SDF-R09-113L462

Active

NorComp Inc.

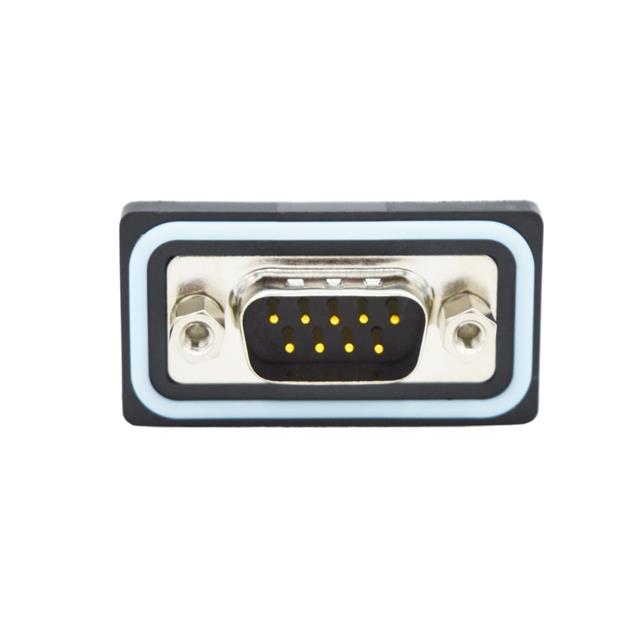

D SUB CONNECTOR, IP67, STANDARD, PLUG, NANOOK SERIES, 9 CONTACTS, DE, SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 3D Product Image EN +3

SDF-R09-113L462

Active

NorComp Inc.

D SUB CONNECTOR, IP67, STANDARD, PLUG, NANOOK SERIES, 9 CONTACTS, DE, SOLDER

Deep-Dive with AI

DocumentsDatasheet 3D Product Image EN +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SDF-R09-113L462	SDF-R09 Series

Color	Black	Black
Connector Style	D-Sub	D-Sub
Connector Type	Plug, Male Pins	Receptacle, Female Sockets, Plug, Male Pins
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.76 Ám
Contact Finish Thickness	30 Áin	30 Áin
Contact Finish Thickness	-	Flash
Contact Material	Brass	Brass
Contact Type	Signal	Signal
Current Rating (Amps)	5 A	5 A
Dielectric Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Features	Grounding Indents, Mounting Brackets, Board Lock	Board Lock, Mounting Brackets, Grounding Indents
Flange Feature	Female Screwlock (4-40), Mating Side	Female Screwlock (4-40), Mating Side
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount	Through Hole, Right Angle, Panel Mount
Number of Positions	9	9
Number of Rows	2	2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Shell Material, Finish	Nickel Plated, Steel	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DE, E	DE, E
Shell Size, Connector Layout [custom]	1	1
Termination	Solder	Solder

SDF-R09 Series

CONN D-SUB RCPT 9POS R/A SLDR

Part	Connector Style	Contact Finish	Mounting Type	Dielectric Material	Contact Finish Thickness	Connector Type	Shell Material, Finish	Material Flammability Rating	Contact Material	Contact Type	Color	Features	Flange Feature	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Termination	Current Rating (Amps)	Number of Positions	Ingress Protection	Contact Finish Thickness	Contact Finish Thickness
NorComp Inc. SDF-R09-213L461	D-Sub	Gold	Panel Mount, Right Angle, Through Hole	Polybutylene Terephthalate (PBT)	Flash	Receptacle, Female Sockets	Nickel Plated, Steel	UL94 V-0	Brass	Signal	Black	Board Lock, Mounting Brackets	Female Screwlock (4-40), Mating Side	-25 °C	85 °C	2	DE, E	1	Solder	5 A	9	IP67 - Dust Tight, Waterproof
NorComp Inc. SDF-R09-113L012	D-Sub	Gold	Panel Mount, Right Angle, Through Hole	Polybutylene Terephthalate (PBT)		Male Pins, Plug	Nickel Plated, Steel	UL94 V-0	Brass	Signal	Black	Grounding Indents	Female Screwlock (4-40), Mating Side	-25 °C	85 °C	2	DE, E	1	Solder	5 A	9	IP67 - Dust Tight, Waterproof	0.76 Ám	30 Áin
NorComp Inc. SDF-R09-113L011	D-Sub	Gold	Panel Mount, Right Angle, Through Hole	Polybutylene Terephthalate (PBT)	Flash	Male Pins, Plug	Nickel Plated, Steel	UL94 V-0	Brass	Signal	Black	Grounding Indents	Female Screwlock (4-40), Mating Side	-25 °C	85 °C	2	DE, E	1	Solder	5 A	9	IP67 - Dust Tight, Waterproof
NorComp Inc. SDF-R09-213L011	D-Sub	Gold	Panel Mount, Right Angle, Through Hole	Polybutylene Terephthalate (PBT)	Flash	Receptacle, Female Sockets	Nickel Plated, Steel	UL94 V-0	Brass	Signal	Black		Female Screwlock (4-40), Mating Side	-25 °C	85 °C	2	DE, E	1	Solder	5 A	9	IP67 - Dust Tight, Waterproof
NorComp Inc. SDF-R09-113L462	D-Sub	Gold	Panel Mount, Right Angle, Through Hole	Polybutylene Terephthalate (PBT)		Male Pins, Plug	Nickel Plated, Steel	UL94 V-0	Brass	Signal	Black	Board Lock, Grounding Indents, Mounting Brackets	Female Screwlock (4-40), Mating Side	-25 °C	85 °C	2	DE, E	1	Solder	5 A	9	IP67 - Dust Tight, Waterproof	0.76 Ám	30 Áin
NorComp Inc. SDF-R09-213L012	D-Sub	Gold	Panel Mount, Right Angle, Through Hole	Polybutylene Terephthalate (PBT)		Receptacle, Female Sockets	Nickel Plated, Steel	UL94 V-0	Brass	Signal	Black		Female Screwlock (4-40), Mating Side	-25 °C	85 °C	2	DE, E	1	Solder	5 A	9	IP67 - Dust Tight, Waterproof	0.76 Ám	30 Áin
NorComp Inc. SDF-R09-213L462	D-Sub	Gold	Panel Mount, Right Angle, Through Hole	Polybutylene Terephthalate (PBT)		Receptacle, Female Sockets	Nickel Plated, Steel	UL94 V-0	Brass	Signal	Black	Board Lock, Mounting Brackets	Female Screwlock (4-40), Mating Side	-25 °C	85 °C	2	DE, E	1	Solder	5 A	9	IP67 - Dust Tight, Waterproof	0.76 Ám	30 Áin
NorComp Inc. SDF-R09-113L461	D-Sub	Gold	Panel Mount, Right Angle, Through Hole	Polybutylene Terephthalate (PBT)	Flash	Male Pins, Plug	Nickel Plated, Steel	UL94 V-0	Brass	Signal	Black	Board Lock, Grounding Indents, Mounting Brackets	Female Screwlock (4-40), Mating Side	-25 °C	85 °C	2	DE, E	1	Solder	5 A	9	IP67 - Dust Tight, Waterproof
