Q-2U02U0001009I

Active

Amphenol Custom Cable

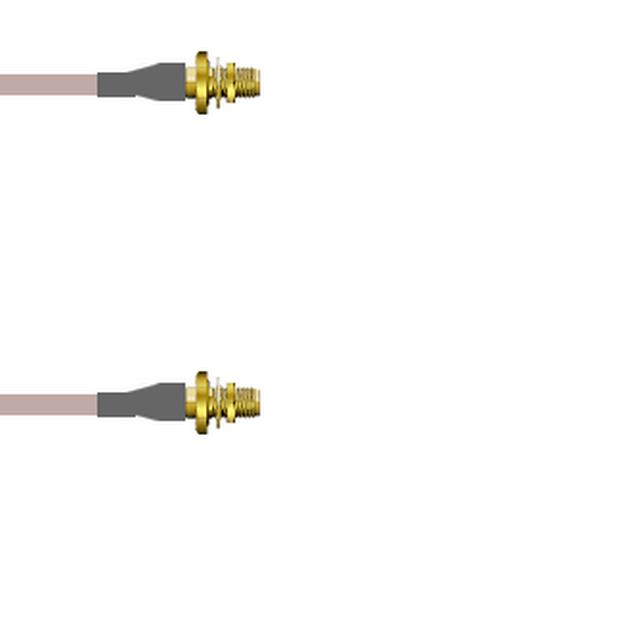

COAX CABLE SMA TO SMA 9"

Search across all available documentation for this part.

Active

Amphenol Custom Cable

COAX CABLE SMA TO SMA 9"

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2U02U0001009I

1st Connector	SMA Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	SMA Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	RG-178
Color	Copper
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	3 GHz
Length	9 "
Length	228.6 mm
Overall Impedance	50 Ohms
Style	SMA to SMA

Part	Cable Type	2nd Contact Gender	Overall Impedance	2nd Connector	Color	1st Contact Gender	2nd Connector Mounting Feature	2nd Connector Mounting Type	1st Connector Mounting Feature	Frequency - Max [Max]	Length	Length	1st Connector Mounting Type	Cable Impedance	Style	Features	1st Connector	Connector Impedance
Amphenol Custom Cable Q-2U02U0001009I	RG-178	Female	50 Ohms	SMA Jack	Copper	Female	Bulkhead - Front Side Nut	Panel Mount	Bulkhead - Front Side Nut	3 GHz	9 "	228.6 mm	Panel Mount	50 Ohms	SMA to SMA	Shielded	SMA Jack	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial SMA to SMA RG-178 9.000" (228.60mm)
