51K611-271N5

Active

Rosenberger

CONN BNC JACK STR 50OHM SOLDER

Search across all available documentation for this part.

Active

Rosenberger

CONN BNC JACK STR 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	51K611-271N5

Body Finish	White Bronze
Body Material	Brass
Cable Group	RG-405 (.085" Semi Rigid)
Center Contact Material	Bronze
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	10 GHz
Housing Color	Silver
Impedance	50 Ohms

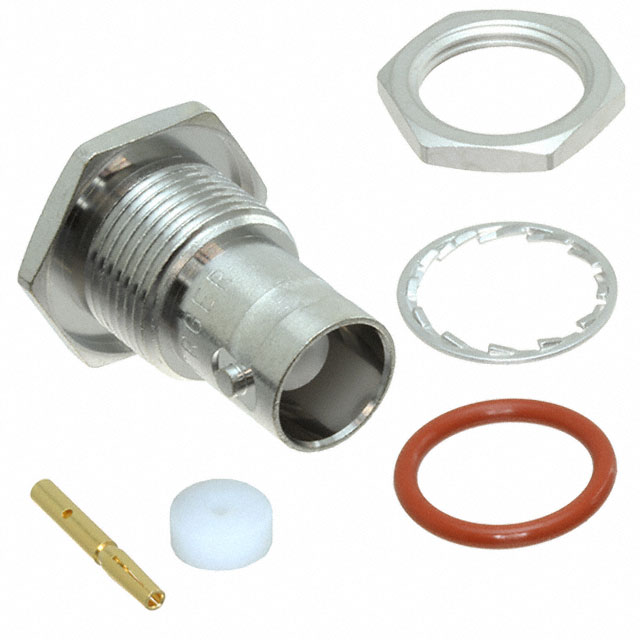

Includes	1 Nut, 1 Lockwasher, 1 Connector, 1 Contact, 1 Insulator
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Shield Termination	Solder
Voltage Rating	400 V

Part	Contact Termination	Fastening Type	Mating Cycles	Frequency - Max [Max]	Impedance	Mounting Feature	Center Contact Plating	Body Material	Shield Termination	Connector Type	Number of Ports	Body Finish	Voltage Rating	Housing Color	Connector Style	Center Contact Material	Dielectric Material	Includes	Cable Group
Rosenberger 51K611-272N5	Solder	Bayonet Lock	500	10 GHz	50 Ohms	Bulkhead - Front Side Nut	Gold	Brass	Solder	Female Socket Jack	1	White Bronze	400 V	Silver	BNC	Bronze	Polytetrafluoroethylene (PTFE)	1 Connector 1 Contact 1 Insulator 1 Lockwasher 1 Nut
Rosenberger 51K611-271N5	Solder	Bayonet Lock	500	10 GHz	50 Ohms	Bulkhead - Front Side Nut	Gold	Brass	Solder	Female Socket Jack	1	White Bronze	400 V	Silver	BNC	Bronze	Polytetrafluoroethylene (PTFE)	1 Connector 1 Contact 1 Insulator 1 Lockwasher 1 Nut	RG-405 (.085" Semi Rigid)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 20.15

General part information

BNC Connector Jack, Female Socket 50 Ohms Panel Mount Solder
