TC-600-LCM-PL

Active

Amphenol Times Microwave Systems

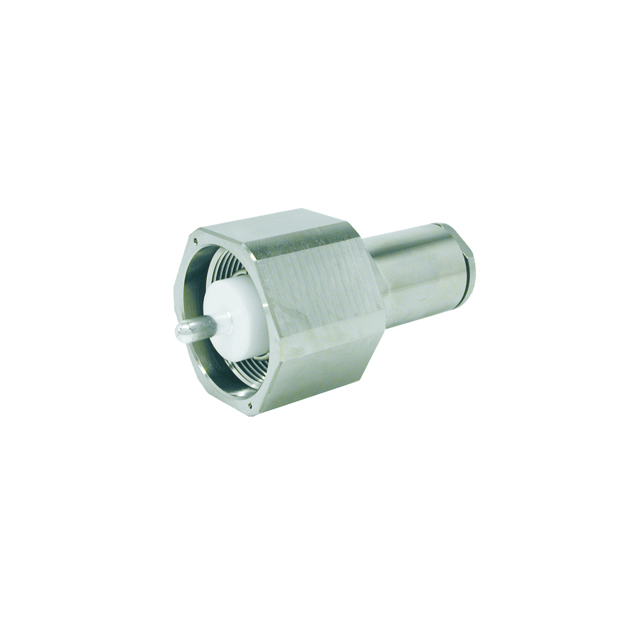

LC-MALE (PLUG) CLAMP CONNECTOR F

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TC-600-LCM-PL

Active

Amphenol Times Microwave Systems

LC-MALE (PLUG) CLAMP CONNECTOR F

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 404.46

Description

General part information

TC-600 Series

LC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TC-600-LCM-PL	TC-600 Series

	-	-
Body Finish	Nickel	Nickel, White Bronze, Silver, Tri-Metal
Body Material	Brass	Brass
Cable Group	LMR-600	LMR-600, LMR-600-75
Center Contact Material	Brass	Phosphor Bronze, Brass, Beryllium Copper
Center Contact Plating	Gold	Gold, Silver
Connector Style	LC	RP-TNC, TNC, UHF, N Type, 7/16 DIN, QDS, HN Type, 4.3/10, LC
Connector Type	Male Pin, Plug	Plug, Female Socket, Jack, Male Pin
Contact Termination	Solder	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	-	Snap-On
Frequency - Max [Max]	1 GHz	1 - 6000 GHz
Housing Color	Silver	Silver
Impedance	50 Ohms	50 Ohms
Ingress Protection	-	IP67 - Dust Tight, Waterproof
Insertion Loss	-	0.05 - 0.1 dB
Mating Cycles	-	500
Mounting Feature	-	Bulkhead - Front Side Nut
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line), Right Angle
Number of Ports	1	1
Operating Temperature [Max]	150 °C	85 - 165 °C
Operating Temperature [Min]	-55 °C	-65 - -40 °C
Shield Termination	Clamp	Crimp, Clamp
Voltage Rating	5000 V	2.5 - 5000 V

TC-600 Series

TNC-MALE (PLUG) CRIMP/REVERSE PO

Part	Contact Termination	Cable Group	Impedance	Connector Style	Connector Type	Center Contact Material	Dielectric Material	Frequency - Max [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Shield Termination	Housing Color	Center Contact Plating	Mounting Type	Voltage Rating	Body Finish	Number of Ports	Body Material	Mating Cycles	Ingress Protection	Insertion Loss
Amphenol Times Microwave Systems TC-600-TM-RP	Solder	LMR-600	50 Ohms	RP-TNC	Female Socket, Plug	Phosphor Bronze	Polytetrafluoroethylene (PTFE)	3 GHz	85 °C	-40 °C	Crimp	Silver	Gold	Free Hanging (In-Line)	500 V	Nickel	1	Brass
Amphenol Times Microwave Systems TC-600-UM-X
Amphenol Times Microwave Systems TC-600-TF-X	Solder	LMR-600	50 Ohms	TNC	Female Socket, Jack	Phosphor Bronze	Polytetrafluoroethylene (PTFE)	6000 MHz	125 °C	-55 °C	Crimp	Silver	Gold	Free Hanging (In-Line)	750 VDC	White Bronze	1	Brass	500
Amphenol Times Microwave Systems TC-600-UMC	Solder	LMR-600	50 Ohms	UHF	Male Pin, Plug			2.5 GHz	85 °C	-40 °C	Clamp	Silver	Gold	Free Hanging (In-Line)		Silver	1
Amphenol Times Microwave Systems TC-600-NMH-75/50	Solder	LMR-600-75	50 Ohms	N Type	Male Pin, Plug	Brass	Polytetrafluoroethylene (PTFE)	2 GHz	85 °C	-40 °C	Crimp	Silver	Gold	Free Hanging (In-Line)	1000 VDC	Nickel	1	Brass
Amphenol Times Microwave Systems TC-600-716M-X	Solder	LMR-600	50 Ohms	7/16 DIN	Male Pin, Plug	Beryllium Copper, Brass	Polytetrafluoroethylene (PTFE)	6000 MHz	85 °C	-40 °C	Crimp	Silver	Silver	Free Hanging (In-Line)		White Bronze	1	Brass		IP67 - Dust Tight, Waterproof	0.05 dB
Amphenol Times Microwave Systems TC-600-716MC	Solder	LMR-600	50 Ohms	7/16 DIN	Male Pin, Plug	Beryllium Copper	Polytetrafluoroethylene (PTFE)	2.5 GHz	85 °C	-40 °C	Clamp	Silver	Silver	Free Hanging (In-Line)	2700 V	Silver	1	Brass
Amphenol Times Microwave Systems TC-600-TM-RA-D	Solder	LMR-600	50 Ohms	TNC	Male Pin, Plug	Brass	Polytetrafluoroethylene (PTFE)	6000 MHz	125 °C	-55 °C	Crimp	Silver	Gold	Free Hanging (In-Line), Right Angle	500 V	White Bronze	1	Brass	500
Amphenol Times Microwave Systems TC-600-NMC-2-D
Amphenol Times Microwave Systems TC-600-NF-PL	Solder	LMR-600	50 Ohms	N Type	Female Socket, Jack	Brass	Polytetrafluoroethylene (PTFE)	6000 MHz	85 °C	-40 °C	Crimp	Silver	Gold	Free Hanging (In-Line)	1000 VDC	Silver	1	Brass
