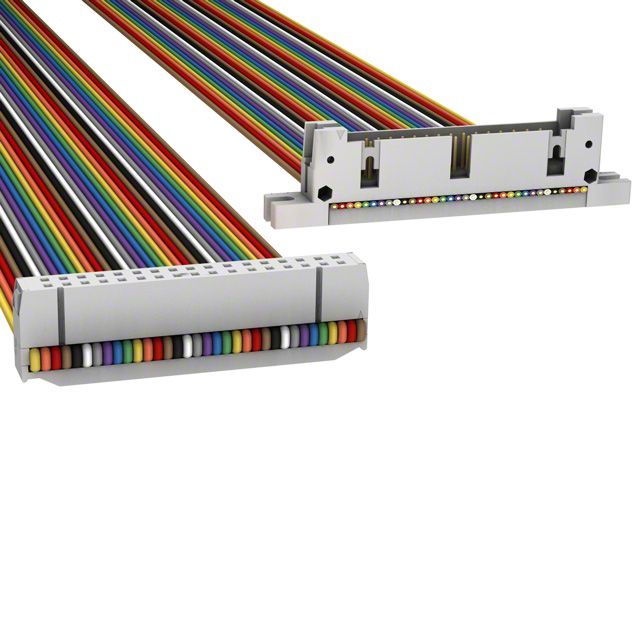

H3BWH-3436M

Active

Assmann WSW Components

IDC CBL - HHSR34H/AE34M/HHPL34H

Search across all available documentation for this part.

Active

Assmann WSW Components

IDC CBL - HHSR34H/AE34M/HHPL34H

Technical Specifications

Parameters and characteristics for this part

Specification	H3BWH-3436M

Cable Termination	IDC
Color	Ribbon, Multiple
Connector Type	Socket to Plug
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Features	Strain Relief (Socket), Polarizing Key (Plug), Flange
Length [x]	3 ft
Length [x]	914.4 mm
Number of Positions	34
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

Part	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Pitch - Cable	Pitch - Cable	Pitch - Connector	Pitch - Connector	Features	Shielding	Number of Rows	Connector Type	Color	Contact Finish	Length	Length	Length	Cable Termination	Length [x]	Length [x]
Assmann WSW Components H3BWH-3406M	15 µin	0.38 µm	34	0.05 "	1.27 mm	0.1 in	2.54 mm	Flange Polarizing Key (Plug) Strain Relief (Socket)	Unshielded	2	Socket to Plug	Multiple Ribbon	Gold	152.4 mm	6 "	0.5 '	IDC
Assmann WSW Components H3BWH-3418M	15 µin	0.38 µm	34	0.05 "	1.27 mm	0.1 in	2.54 mm	Flange Polarizing Key (Plug) Strain Relief (Socket)	Unshielded	2	Socket to Plug	Multiple Ribbon	Gold				IDC	457.2 mm	1.5 ft
Assmann WSW Components H3BWH-3436M	15 µin	0.38 µm	34	0.05 "	1.27 mm	0.1 in	2.54 mm	Flange Polarizing Key (Plug) Strain Relief (Socket)	Unshielded	2	Socket to Plug	Multiple Ribbon	Gold				IDC	914.4 mm	3 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

34 Position Cable Assembly Rectangular Socket to Plug 3.00' (914.40mm)
