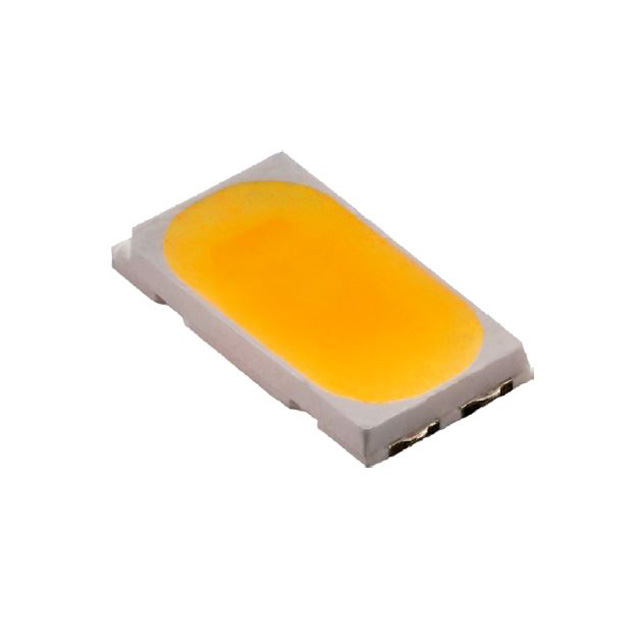

JB5630AWT-P-H30GA0000-NZ000001

Active

Cree LED

LED J WARM WHT 3000K 2PLCC

Search across all available documentation for this part.

Active

Cree LED

LED J WARM WHT 3000K 2PLCC

Technical Specifications

Parameters and characteristics for this part

Specification	JB5630AWT-P-H30GA0000-NZ000001

CCT (K)	3000 K
Color	White, Warm
CRI (Color Rendering Index)	80
Current - Max [Max]	240 mA
Current - Test	65 mA
Flux @ 25°C, Current - Test	34 lm
Height - Seated (Max) [Max] [z]	0.8 mm
Height - Seated (Max) [Max] [z]	0.031 "
Lumens/Watt @ Current - Test	187 lm/W
Mounting Type	Surface Mount
Package / Case	5630 Metric
Package / Case	2212
Size / Dimension [x]	0.22 in
Size / Dimension [x]	5.6 mm
Size / Dimension [y]	3 mm
Size / Dimension [y]	0.118 in
Supplier Device Package	2-PLCC
Thermal Resistance of Package [custom]	11 °C/W
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	2.8 V

Part	Color	Current - Max [Max]	Package / Case	Package / Case	CRI (Color Rendering Index)	Mounting Type	Viewing Angle	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Flux @ 25°C, Current - Test	Voltage - Forward (Vf) (Typ)	Current - Test	Flux @ 85°C, Current - Test	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	CCT (K)	Supplier Device Package	Thermal Resistance of Package [diameter]	Lumens/Watt @ Current - Test	Thermal Resistance of Package [custom]
Cree LED JB5630AWT-P-H40GA0000-NZ000001	Neutral White	240 mA	5630 Metric	2212	80	Surface Mount	120 °	0.22 in	3 mm	0.118 in	5.6 mm	36 lm	2.71 V	65 mA	34 lm	0.8 mm	0.031 "	4000 K	2-PLCC	6.6 °C/W
Cree LED JB5630AWT-P-H35GA0000-NZ000001	Warm White	240 mA	5630 Metric	2212	80	Surface Mount	120 °	0.22 in	3 mm	0.118 in	5.6 mm	35 lm	2.71 V	65 mA	33 lm	0.8 mm	0.031 "	3500 K	2-PLCC	6.6 °C/W	199 lm/W
Cree LED JB5630AWT-P-H30GA0000-NZ000001	Warm White	240 mA	5630 Metric	2212	80	Surface Mount	120 °	0.22 in	3 mm	0.118 in	5.6 mm	34 lm	2.8 V	65 mA		0.8 mm	0.031 "	3000 K	2-PLCC		187 lm/W	11 °C/W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting J White, Warm 3000K 3-Step MacAdam Ellipse 2.8V 65mA 120° 2212 (5630 Metric)
