XMAR-06VF-S

Active

JST Sales America Inc.

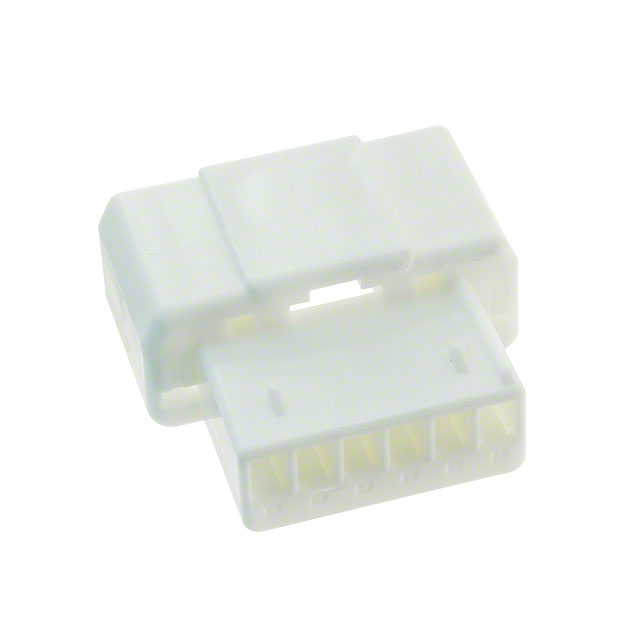

CONN RCPT HSG 6POS 2.50MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsXMA Specification Datasheet +1

XMAR-06VF-S

Active

JST Sales America Inc.

CONN RCPT HSG 6POS 2.50MM

Deep-Dive with AI

DocumentsXMA Specification Datasheet +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 0.22

Description

General part information

XMAR Series

6 Rectangular Connectors - Housings Receptacle White 0.098" (2.50mm)

Documents

Technical documentation and resources

XMA Specification

Datasheet

JST Prefix Suffix Chart

Datasheet

Specification	XMAR-06VF-S	XMAR Series

Color	White	White, Red, Blue
Connector Type	Receptacle	Receptacle
Contact Termination	Crimp	Crimp
Contact Type	Male Pin	Male Pin
Fastening Type	Latch Holder	Latch Holder
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	6	2 - 6
Number of Rows	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Pitch [x]	0.098 in	0.098 in
Pitch [x]	2.5 mm	2.5 mm

Part	Contact Termination	Operating Temperature [Min]	Operating Temperature [Max]	Note	Insulation Material	Number of Rows	Contact Type	Pitch [x]	Pitch [x]	Number of Positions	Color	Fastening Type	Mounting Type	Connector Type
JST Sales America Inc. XMAR-06VF-S	Crimp	-25 °C	85 °C	Contacts Not Included	Polybutylene Terephthalate (PBT), Glass Filled	1	Male Pin	0.098 in	2.5 mm	6	White	Latch Holder	Free Hanging (In-Line)	Receptacle
JST Sales America Inc. XMAR-02VF-1-S	Crimp	-25 °C	85 °C	Contacts Not Included	Polybutylene Terephthalate (PBT), Glass Filled	1	Male Pin	0.098 in	2.5 mm	2	White	Latch Holder	Free Hanging (In-Line)	Receptacle
JST Sales America Inc. XMAR-03VF-1-S(N)	Crimp	-25 °C	85 °C	Contacts Not Included	Polybutylene Terephthalate (PBT), Glass Filled	1	Male Pin	0.098 in	2.5 mm		White	Latch Holder	Free Hanging (In-Line)	Receptacle
JST Sales America Inc. XMAR-05VF-S	Crimp	-25 °C	85 °C	Contacts Not Included	Polybutylene Terephthalate (PBT), Glass Filled	1	Male Pin	0.098 in	2.5 mm		White	Latch Holder	Free Hanging (In-Line)	Receptacle
JST Sales America Inc. XMAR-03VF-2-R	Crimp	-25 °C	85 °C	Contacts Not Included	Polybutylene Terephthalate (PBT), Glass Filled	1	Male Pin	0.098 in	2.5 mm		Red	Latch Holder	Free Hanging (In-Line)	Receptacle
JST Sales America Inc. XMAR-05VF-E	Crimp	-25 °C	85 °C	Contacts Not Included	Polybutylene Terephthalate (PBT), Glass Filled	1	Male Pin	0.098 in	2.5 mm		Blue	Latch Holder	Free Hanging (In-Line)	Receptacle
JST Sales America Inc. XMAR-04VF-E(N)	Crimp	-25 °C	85 °C	Contacts Not Included	Polybutylene Terephthalate (PBT), Glass Filled	1	Male Pin	0.098 in	2.5 mm	4	Blue	Latch Holder	Free Hanging (In-Line)	Receptacle
JST Sales America Inc. XMAR-02VF-2-R	Crimp	-25 °C	85 °C	Contacts Not Included	Polybutylene Terephthalate (PBT), Glass Filled	1	Male Pin	0.098 in	2.5 mm	2	Red	Latch Holder	Free Hanging (In-Line)	Receptacle
JST Sales America Inc. XMAR-04VF-R	Crimp	-25 °C	85 °C	Contacts Not Included	Polybutylene Terephthalate (PBT), Glass Filled	1	Male Pin	0.098 in	2.5 mm	4	Red	Latch Holder	Free Hanging (In-Line)	Receptacle
JST Sales America Inc. XMAR-04VF-S	Crimp	-25 °C	85 °C	Contacts Not Included	Polybutylene Terephthalate (PBT), Glass Filled	1	Male Pin	0.098 in	2.5 mm	4	White	Latch Holder	Free Hanging (In-Line)	Receptacle
