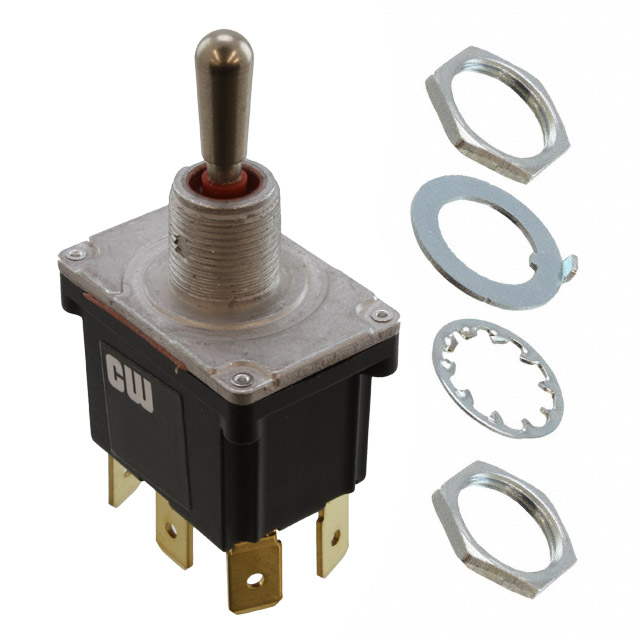

GTB-3B11

Active

CW Industries

SWITCH TOGGLE DPDT 12A 125V

Search across all available documentation for this part.

Active

CW Industries

SWITCH TOGGLE DPDT 12A 125V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch DPDT Panel Mount

Technical documentation and resources

Specification	GTB-3B11	GTB-3B1 Series

Actuator Length [x]	17 mm	17 mm
Actuator Material	Brass, Nickel Plated	Brass, Nickel Plated
Actuator Type	Standard Round	Standard Round
Bushing Thread	15/32-32	15/32-32
Circuit	DPDT	DPDT
Current Rating (Amps)	12 A	12 A
Electrical Life	30000 Cycles	30000 Cycles
Illumination	Non-Illuminated	Non-Illuminated
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Panel Cutout Dimensions [diameter]	12 mm	12 mm
Switch Function	On-Off-On	On-Off-On, Mom-Off-Mom
Termination Style	Quick Connect - 0.250" (6.3mm)	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	125 V	125 V

Part	Illumination	Switch Function	Actuator Material	Electrical Life	Circuit	Bushing Thread	Voltage Rating - AC	Actuator Type	Panel Cutout Dimensions [diameter]	Ingress Protection	Actuator Length [x]	Current Rating (Amps)	Termination Style
CW Industries GTB-3B11	Non-Illuminated	On-Off-On	Brass, Nickel Plated	30000 Cycles	DPDT	15/32-32	125 V	Standard Round	12 mm	IP68 - Dust Tight, Waterproof	17 mm	12 A	Quick Connect - 0.250" (6.3mm)
CW Industries GTB-3B17	Non-Illuminated	Mom-Off-Mom	Brass, Nickel Plated	30000 Cycles	DPDT	15/32-32	125 V	Standard Round	12 mm	IP68 - Dust Tight, Waterproof	17 mm	12 A	Quick Connect - 0.250" (6.3mm)
