PJ-053D

Obsolete

CUI Devices

CONN PWR JACK 1.3X3.4MM SOLDER

Search across all available documentation for this part.

Obsolete

CUI Devices

CONN PWR JACK 1.3X3.4MM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	PJ-053D

Actual Diameter [diameter]	1.3 mm, 3.9 mm
Actual Diameter [diameter]	0.154 in, 0.051 in
Body Color	Black
Connector Type	Jack
Contact Material	Copper Alloy, Brass
Contact Material - Plating [custom]	Nickel
Current Rating (Amps)	2 A
Features	Board Guide
Gender	Male
Industry Recognized Mating Diameter	1.3 mm, 3.4 mm
Industry Recognized Mating Diameter	0.051 ", 0.134 "
Internal Switch(s)	Single Switch, Normally Closed
Material Flammability Rating	UL94 V-0
Mating Length/Depth	0.244 in
Mating Length/Depth	6.2 mm
Mounting Type	Through Hole, Right Angle
Number of Positions/Contacts	3 Conductors, 2 Conductors
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shielding	Unshielded
Termination	Solder
Voltage - Rated	24 VDC

Part	Contact Material	Internal Switch(s)	Body Color	Connector Type	Current Rating (Amps)	Number of Positions/Contacts	Material Flammability Rating	Voltage - Rated	Mounting Type	Gender	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Features	Contact Material - Plating [custom]	Mating Length/Depth	Mating Length/Depth	Actual Diameter [diameter]	Actual Diameter [diameter]	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Termination
CUI Devices PJ-053D	Brass Copper Alloy	Normally Closed Single Switch	Black	Jack	2 A	2 Conductors 3 Conductors	UL94 V-0	24 VDC	Through Hole Right Angle	Male	-25 °C	85 °C	Unshielded	Board Guide	Nickel	0.244 in	6.2 mm	1.3 mm 3.9 mm	0.051 in 0.154 in	1.3 mm 3.4 mm	0.051 " 0.134 "	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	171	$ 0.41

General part information

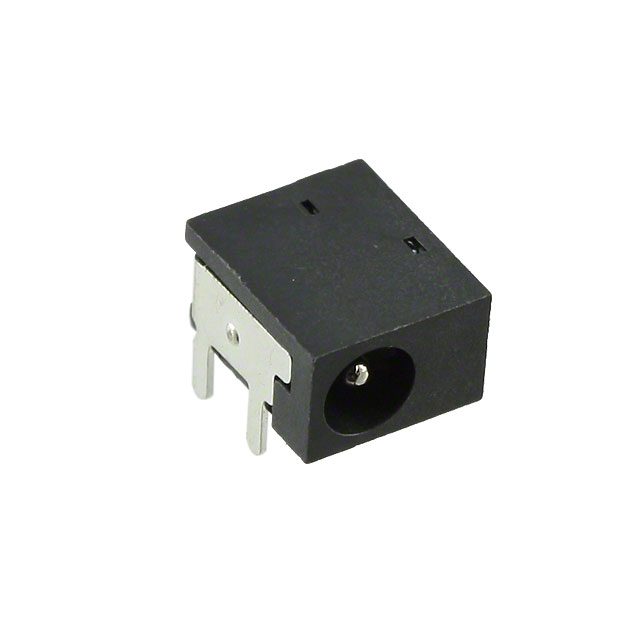

Power Barrel Connector Jack 1.30mm ID (0.051"), 3.40mm OD (0.134") Through Hole, Right Angle
