HLE-123-02-L-DV-A-P

Active

Samtec Inc.

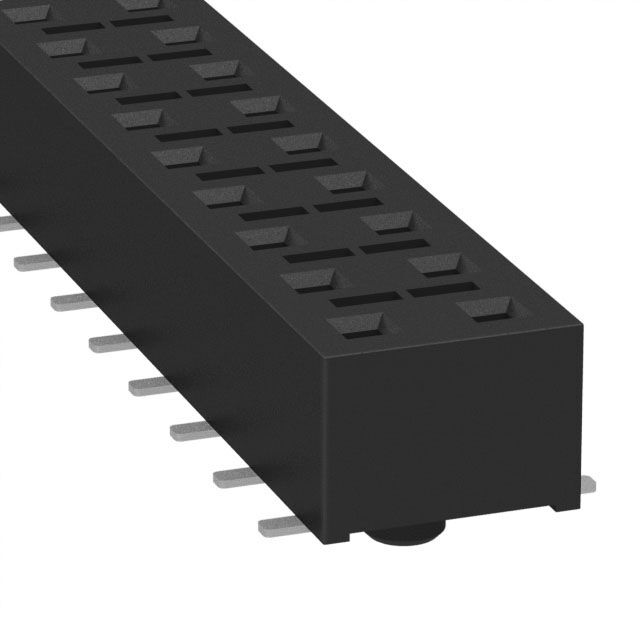

CONN RCPT 46POS 0.1 GOLD SMD

Deep-Dive with AI

Search across all available documentation for this part.

HLE-123-02-L-DV-A-P

Active

Samtec Inc.

CONN RCPT 46POS 0.1 GOLD SMD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HLE-123-02-L-DV-A-P

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Material	Beryllium Copper
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	4.1 A
Fastening Type	Push-Pull
Features	Pick and Place, Board Guide
Insulation Color	Black
Insulation Height	3.66 mm
Insulation Height	0.144 in
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Surface Mount
Number of Positions	46
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder
Voltage Rating	400 VAC

HLE-123 Series

Part	Current Rating (Amps)	Contact Finish - Post	Insulation Height	Insulation Height	Voltage Rating	Contact Material	Contact Finish - Mating	Connector Type	Features	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Number of Rows	Contact Type	Fastening Type	Insulation Color	Termination	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Mounting Type	Pitch - Mating	Pitch - Mating	Number of Positions	Contact Shape	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Samtec Inc. HLE-123-02-S-DV-A	4.1 A	Tin	3.66 mm	0.144 in	400 VAC	Beryllium Copper	Gold	Receptacle	Board Guide	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	2	Female Socket	Push-Pull	Black	Solder	All	30 Áin	0.76 Ám	2.54 mm	0.1 in	Surface Mount	0.1 in	2.54 mm	46	Square
Samtec Inc. HLE-123-02-F-DV	4.1 A	Tin	3.66 mm	0.144 in	400 VAC	Beryllium Copper	Gold	Receptacle		-55 °C	125 °C	Liquid Crystal Polymer (LCP)	2	Female Socket	Push-Pull	Black	Solder	All	3 µin	0.076 µm	2.54 mm	0.1 in	Surface Mount	0.1 in	2.54 mm	46	Square
Samtec Inc. HLE-123-02-L-DV-BE-A	4.1 A	Tin	3.66 mm	0.144 in	400 VAC	Beryllium Copper	Gold	Receptacle Bottom Entry	Board Guide	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	2	Female Socket	Push-Pull	Black	Solder	All	10 çin	0.25 çm	2.54 mm	0.1 in	Surface Mount	0.1 in	2.54 mm	46	Square
Samtec Inc. HLE-123-02-G-DV-LC	4.1 A	Gold	3.66 mm	0.144 in	400 VAC	Beryllium Copper	Gold	Receptacle		-55 °C	125 °C	Liquid Crystal Polymer (LCP)	2	Female Socket	Push-Pull	Black	Solder	All	20 µin	0.51 µm	2.54 mm	0.1 in	Surface Mount	0.1 in	2.54 mm	46	Square	3 µin	0.076 µm
Samtec Inc. HLE-123-02-L-DV-A-P	4.1 A	Tin	3.66 mm	0.144 in	400 VAC	Beryllium Copper	Gold	Receptacle	Board Guide Pick and Place	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	2	Female Socket	Push-Pull	Black	Solder	All	10 çin	0.25 çm	2.54 mm	0.1 in	Surface Mount	0.1 in	2.54 mm	46	Square

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	9	$ 6.94

Description

General part information

HLE-123 Series

46 Position Receptacle Connector 0.100" (2.54mm) Surface Mount Gold

Documents

Technical documentation and resources

No documents available
