627-W25-221-012

Active

EDAC Inc.

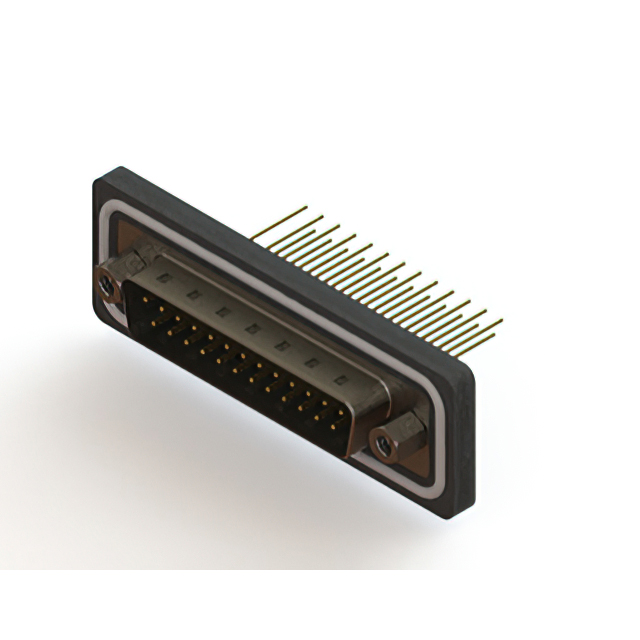

CONN D-SUB PLUG 25P PNL MNT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

627-W25-221-012

Active

EDAC Inc.

CONN D-SUB PLUG 25P PNL MNT SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	627-W25-221-012

Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	5 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Grounding Indents
Flange Feature	Board Side, 4-40
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DB, B
Shell Size, Connector Layout [custom]	3
Termination	Solder

627-W25 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Ingress Protection	Contact Finish Thickness	Contact Finish Thickness	Features	Dielectric Material	Contact Material	Connector Style	Contact Finish	Contact Type	Flange Feature	Color	Mounting Type	Current Rating (Amps)	Number of Rows	Connector Type	Material Flammability Rating	Shell Material, Finish	Termination	Contact Finish Thickness
EDAC Inc. 627-W25-622-012	-25 °C	85 °C	B DB	3	IP67 - Dust Tight Waterproof	0.76 Ám	30 Áin	Grounding Indents	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	D-Sub	Gold	Signal and Power	4-40 Board Side	Black	Free Hanging (In-Line)	5 A	2	Male Pins Plug	UL94 V-0	Nickel Plated Steel
EDAC Inc. 627-W25-320-012	-25 °C	85 °C	B DB	3	IP67 - Dust Tight Waterproof	0.38 µm	15 µin	Grounding Indents	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	D-Sub	Gold	Signal and Power	4-40 Board Side	Black	Panel Mount Through Hole	5 A	2	Male Pins Plug	UL94 V-0	Nickel Plated Steel	Solder
EDAC Inc. 627-W25-320-013	-25 °C	85 °C	B DB	3	IP67 - Dust Tight Waterproof	0.38 µm	15 µin	Board Lock Grounding Indents	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	D-Sub	Gold	Signal and Power	4-40 Board Side	Black	Panel Mount Through Hole	5 A	2	Male Pins Plug	UL94 V-0	Nickel Plated Steel	Solder
EDAC Inc. 627-W25-620-012	-25 °C	85 °C	B DB	3	IP67 - Dust Tight Waterproof	0.76 Ám	30 Áin	Grounding Indents	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	D-Sub	Gold	Signal and Power	4-40 Board Side	Black	Panel Mount Through Hole	5 A	2	Male Pins Plug	UL94 V-0	Nickel Plated Steel	Solder
EDAC Inc. 627-W25-322-012	-25 °C	85 °C	B DB	3	IP67 - Dust Tight Waterproof	0.38 µm	15 µin	Grounding Indents	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	D-Sub	Gold	Signal and Power	4-40 Board Side	Black	Free Hanging (In-Line)	5 A	2	Male Pins Plug	UL94 V-0	Nickel Plated Steel
EDAC Inc. 627-W25-321-012	-25 °C	85 °C	B DB	3	IP67 - Dust Tight Waterproof	0.38 µm	15 µin	Grounding Indents	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	D-Sub	Gold	Signal and Power	4-40 Board Side	Black	Panel Mount Through Hole	5 A	2	Male Pins Plug	UL94 V-0	Nickel Plated Steel	Solder
EDAC Inc. 627-W25-221-012	-25 °C	85 °C	B DB	3	IP67 - Dust Tight Waterproof			Grounding Indents	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	D-Sub	Gold	Signal and Power	4-40 Board Side	Black	Panel Mount Through Hole	5 A	2	Male Pins Plug	UL94 V-0	Nickel Plated Steel	Solder	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	120	$ 19.46

Description

General part information

627-W25 Series

25 Position D-Sub Plug, Male Pins Connector
