APEK80606KEV-01-MH

Obsolete

Allegro MicroSystems

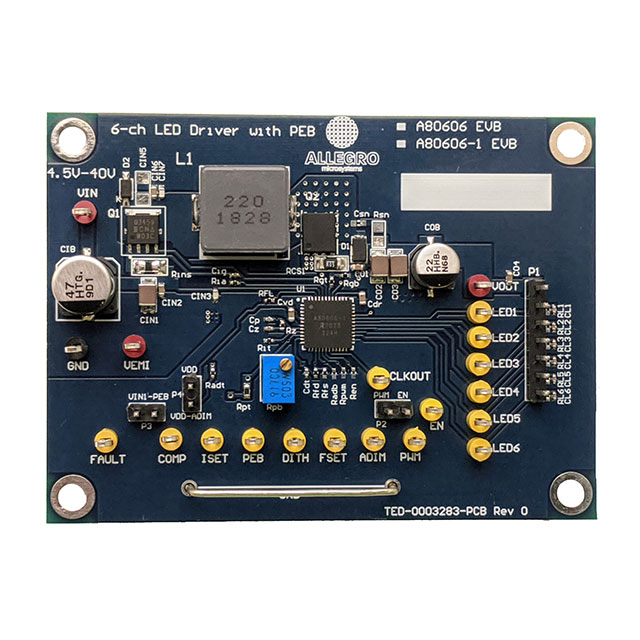

EVAL BOARD FOR A80606

Search across all available documentation for this part.

Obsolete

Allegro MicroSystems

EVAL BOARD FOR A80606

Technical Specifications

Parameters and characteristics for this part

Specification	APEK80606KEV-01-MH

Current - Output / Channel [custom]	180 mA
Features	Dimmable
Outputs and Type	6 Outputs
Supplied Contents	Board(s)
Utilized IC / Part	A80606
Voltage - Input [Max]	40 V
Voltage - Input [Min]	4.5 V

Part	Features	Utilized IC / Part	Voltage - Input [Min]	Voltage - Input [Max]	Supplied Contents	Outputs and Type	Current - Output / Channel [custom]	Grade	Mounting Type	Applications	Supplier Device Package	Number of Outputs	Dimming	Topology	Voltage - Output [Min]	Voltage - Output [Max]	Voltage - Supply (Max) [Max]	Package / Case	Frequency [Min]	Frequency [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply (Min) [Min]	Type
Allegro MicroSystems APEK80606KEV-01-MH-1	Dimmable	A80606	4.5 V	40 V	Board(s)	6 Outputs	180 mA
Allegro MicroSystems A80606KEVJSR-1							180 mA	Automotive	Surface Mount	Backlight	48-QFN-EP (7x7)	6	Analog PWM	SEPIC Step-Up (Boost)	1.06 V	40 V	40 V	48-VFQFN Exposed Pad	260 kHz	2.3 MHz	-40 °C	125 °C	4.5 V	DC DC Regulator
Allegro MicroSystems APEK80606KEV-01-MH	Dimmable	A80606	4.5 V	40 V	Board(s)	6 Outputs	180 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 136.87

General part information

A80606 - 6 Non-Isolated Outputs pval(5) LED Driver Evaluation Board
