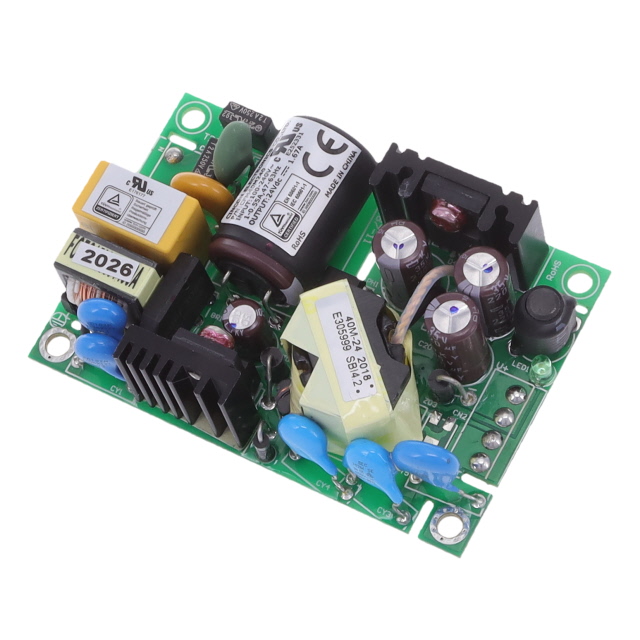

CFM40M240-P
ActiveCincon Electronics Co. LTD
AC/DC CONVERTER 24V 40W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CFM40M240-P
ActiveCincon Electronics Co. LTD
AC/DC CONVERTER 24V 40W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CFM40M240-P |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | CE, cURus, FCC, TUV |
| Current - Output (Max) [Max] | 1.67 A |
| Efficiency | 88 % |
| Features | Universal Input |
| Line Regulation | 0.5 % |
| Load Regulation | 1 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 °C |
| Package / Case | 6-DIP Module |
| Power (Watts) | 40 W |
| Size / Dimension [x] | 3 " |
| Size / Dimension [x] | 76.2 mm |
| Size / Dimension [y] | 50.8 mm |
| Size / Dimension [y] | 2 in |
| Size / Dimension [z] | 0.98 in |
| Size / Dimension [z] | 25 mm |
| Standard Number | 60950-1, 60601-1 |
| Type | Open Frame |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 26.00 | |
| 5 | $ 25.22 | |||
| 10 | $ 24.46 | |||
| 25 | $ 23.73 | |||
| 50 | $ 22.78 | |||
| 100 | $ 21.64 | |||
| 500 | $ 18.44 | |||
Description
General part information
CFM40M240 Series
Open Frame AC DC Converters 1 Output 24V 1.67A 90 ~ 264 VAC Input
