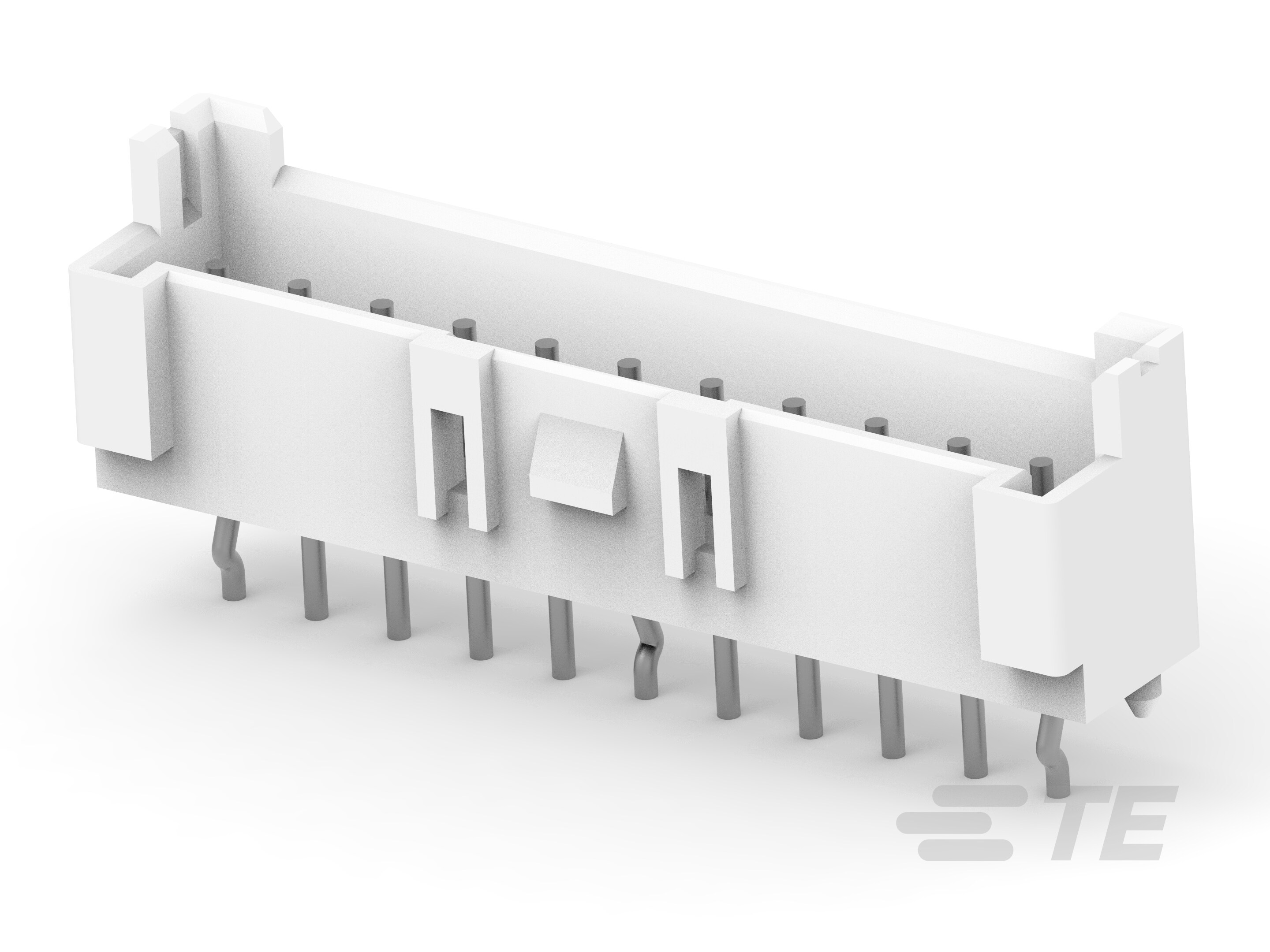

Specification	1-2132230-1

Applications	General Purpose, Lighting, Industrial
Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	80 µin
Contact Finish Thickness - Post	80 µin
Contact Length - Mating	0.122 in
Contact Length - Post	0.134 in
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Male Pin
Current Rating	4.2 A
Fastening Type	Friction Lock
Features	Board Guide
Insulation Color	White
Insulation Height	0.346 in
Insulation Material	Resin, Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	11
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Pitch - Mating	0.098 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Kinked Pin, Solder
Voltage Rating	250 V

2132230 Series

Part	Style	Pitch - Mating	Contact Type	Material Flammability Rating	Connector Type	Insulation Material	Termination	Voltage Rating	Mounting Type	Contact Finish - Post	Contact Length - Mating	Operating Temperature (Min)	Operating Temperature (Max)	Shrouding	Number of Rows	Contact Shape	Contact Length - Post	Contact Finish - Mating	Insulation Color	Fastening Type	Features	Insulation Height	Current Rating	Number of Positions	Contact Finish Thickness - Mating	Contact Material	Number of Positions Loaded	Applications	Contact Finish Thickness - Post

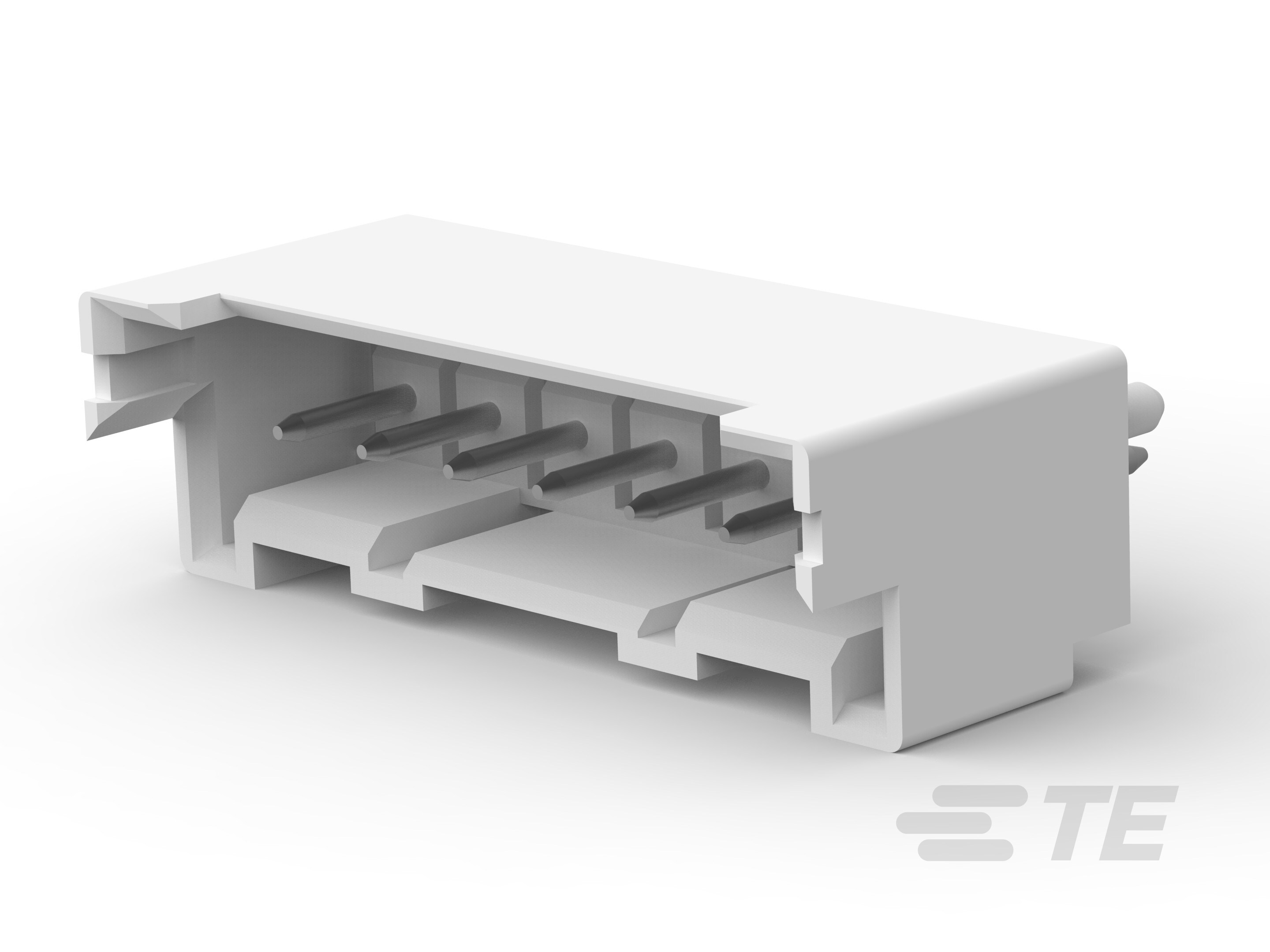

TE Connectivity AMP Connectors 2-2132230-0	Board Cable/Wire	0.098 in	Male Pin	UL94 V-0	Header	Nylon 6/6 Polyamide (PA66) Resin	Kinked Pin Solder	250 V	Through Hole	Tin	0.122 in	-55 °C	105 °C	Shrouded - 4 Wall	1	Circular	0.134 in	Tin	White	Friction Lock	Board Guide	0.346 in	4.2 A	20	80 µin	Copper Alloy	All	General Purpose Industrial Lighting	80 µin
TE Connectivity AMP Connectors 1-2132230-8	Board Cable/Wire	0.098 in	Male Pin	UL94 V-0	Header	Nylon 6/6 Polyamide (PA66) Resin	Kinked Pin Solder	250 V	Through Hole	Tin	0.122 in	-55 °C	105 °C	Shrouded - 4 Wall	1	Circular	0.134 in	Tin	White	Friction Lock	Board Guide	0.346 in	4.2 A	18	80 µin	Copper Alloy	All	General Purpose Industrial Lighting	80 µin
TE Connectivity AMP Connectors 1-2132230-7	Board Cable/Wire	0.098 in	Male Pin	UL94 V-0	Header	Nylon 6/6 Polyamide (PA66) Resin	Kinked Pin Solder	250 V	Through Hole	Tin	0.122 in	-55 °C	105 °C	Shrouded - 4 Wall	1	Circular	0.134 in	Tin	White	Friction Lock	Board Guide	0.346 in	4.2 A	17	80 µin	Copper Alloy	All	General Purpose Industrial Lighting	80 µin
TE Connectivity AMP Connectors 2132230-5	Board Cable/Wire	0.098 in	Male Pin	UL94 V-0	Header	Nylon 6/6 Polyamide (PA66) Resin	Kinked Pin Solder	250 V	Through Hole	Tin	0.122 in	-55 °C	105 °C	Shrouded - 4 Wall	1	Circular	0.134 in	Tin	White	Friction Lock	Board Guide	0.346 in	4.2 A	5	80 µin	Copper Alloy	All	General Purpose Industrial Lighting	80 µin
TE Connectivity AMP Connectors 2132230-2	Board Cable/Wire	0.098 in	Male Pin	UL94 V-0	Header	Nylon 6/6 Polyamide (PA66) Resin	Kinked Pin Solder	250 V	Through Hole	Tin	0.122 in	-55 °C	105 °C	Shrouded - 4 Wall	1	Circular	0.134 in	Tin	White	Friction Lock	Board Guide	0.346 in	4.2 A	2	80 µin	Copper Alloy	All	General Purpose Industrial Lighting	80 µin
TE Connectivity AMP Connectors 2132230-7	Board Cable/Wire	0.098 in	Male Pin	UL94 V-0	Header	Nylon 6/6 Polyamide (PA66) Resin	Kinked Pin Solder	250 V	Through Hole	Tin	0.122 in	-55 °C	105 °C	Shrouded - 4 Wall	1	Circular	0.134 in	Tin	White	Friction Lock	Board Guide	0.346 in	4.2 A	7	80 µin	Copper Alloy	All	General Purpose Industrial Lighting	80 µin
TE Connectivity AMP Connectors 1-2132230-1	Board Cable/Wire	0.098 in	Male Pin	UL94 V-0	Header	Nylon 6/6 Polyamide (PA66) Resin	Kinked Pin Solder	250 V	Through Hole	Tin	0.122 in	-55 °C	105 °C	Shrouded - 4 Wall	1	Circular	0.134 in	Tin	White	Friction Lock	Board Guide	0.346 in	4.2 A	11	80 µin	Copper Alloy	All	General Purpose Industrial Lighting	80 µin
TE Connectivity AMP Connectors 1-2132230-2	Board Cable/Wire	0.098 in	Male Pin	UL94 V-0	Header	Nylon 6/6 Polyamide (PA66) Resin	Kinked Pin Solder	250 V	Through Hole	Tin	0.122 in	-55 °C	105 °C	Shrouded - 4 Wall	1	Circular	0.134 in	Tin	White	Friction Lock	Board Guide	0.346 in	4.2 A	12	80 µin	Copper Alloy	All	General Purpose Industrial Lighting	80 µin
TE Connectivity AMP Connectors 2132230-8	Board Cable/Wire	0.098 in	Male Pin	UL94 V-0	Header	Nylon 6/6 Polyamide (PA66) Resin	Kinked Pin Solder	250 V	Through Hole	Tin	0.122 in	-55 °C	105 °C	Shrouded - 4 Wall	1	Circular	0.134 in	Tin	White	Friction Lock	Board Guide	0.346 in	4.2 A	8	80 µin	Copper Alloy	All	General Purpose Industrial Lighting	80 µin
