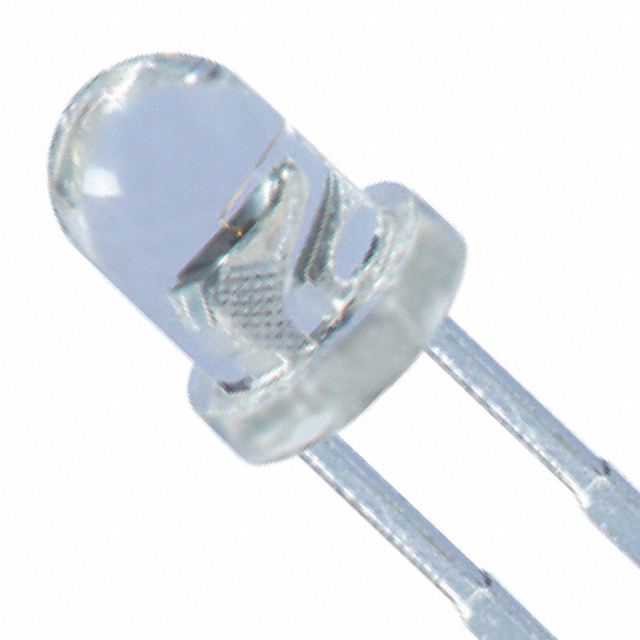

XTHI30W860
ActiveSunLED
EMITTER IR 860NM 50MA RADIAL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XTHI30W860
ActiveSunLED
EMITTER IR 860NM 50MA RADIAL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XTHI30W860 |
|---|---|
| Current - DC Forward (If) (Max) [Max] | 50 mA |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Top View |
| Package / Case | Radial |
| Radiant Intensity (Ie) Min @ If | 15 mW/sr |
| Type | Infrared (IR) |
| Viewing Angle | 50 ° |
| Voltage - Forward (Vf) (Typ) | 1.35 V |
| Wavelength | 860 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1000 | $ 0.33 | |
Description
General part information
XTHI30 Series
Infrared (IR) Emitter 860nm 1.35V 50mA 15mW/sr @ 50mA 50° Radial
