RN116-2-02-3M3

Active

TE Connectivity Raychem Cable Protection

CMC 3.3MH 2A 2LN TH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RN116-2-02-3M3

Active

TE Connectivity Raychem Cable Protection

CMC 3.3MH 2A 2LN TH

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RN116-2-02-3M3

Approval Agency	ENEC, UR, VDE
Current Rating (Max) [Max]	2 A
DC Resistance (DCR) (Max)	70 mOhm
Filter Type	Power Line
Height (Max) [Max]	13.5 mm
Height (Max) [Max]	0.531 in
Inductance @ Frequency	3.3 mH
Mounting Type	Through Hole
Number of Lines	2
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Package / Case	Horizontal
Package / Case	4 Lead
Size / Dimension [x]	22.5 mm
Size / Dimension [x]	0.886 "
Size / Dimension [y]	0.846 in
Size / Dimension [y]	21.5 mm
Voltage Rating - AC	300 V

RN116 Series

Part	DC Resistance (DCR) (Max) [Max]	Mounting Type	Package / Case	Package / Case	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Filter Type	Approval Agency	Height (Max) [Max]	Height (Max) [Max]	Inductance @ Frequency	Number of Lines	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Current Rating (Max) [Max]	DC Resistance (DCR) (Max)
TE Connectivity Raychem Cable Protection RN116-1.7-02-4M0	87 mOhm	Through Hole	Horizontal	4 Lead	300 V	100 °C	-40 °C	Power Line	ENEC UR VDE	13.5 mm	0.531 in	4 mH	2	0.846 in	21.5 mm	22.5 mm	0.886 "
TE Connectivity Raychem Cable Protection RN116-1.3-02-6M8		Through Hole	Horizontal	4 Lead	300 V	100 °C	-40 °C	Power Line	ENEC UR VDE	13.5 mm	0.531 in	6.8 mH 10 kHz	2	0.846 in	21.5 mm	22.5 mm	0.886 "	1.3 A	140 mOhm
TE Connectivity Raychem Cable Protection RN116-0.8-02-27M		Through Hole	Horizontal	4 Lead	300 V	100 °C	-40 °C	Power Line	ENEC UR VDE	13.5 mm	0.531 in	27 mH	2	0.846 in	21.5 mm	22.5 mm	0.886 "	800 mA	370 mOhm
TE Connectivity Raychem Cable Protection RN116-1.5-02-10M		Through Hole	Horizontal	4 Lead	300 V	100 °C	-40 °C	Power Line	ENEC UR VDE	13.5 mm	0.531 in	10 mH	2	0.846 in	21.5 mm	22.5 mm	0.886 "	1.5 A	148 mOhm
TE Connectivity Raychem Cable Protection RN116-0.5-02-27M		Through Hole	Horizontal	4 Lead	300 V	100 °C	-40 °C	Power Line	ENEC UR VDE	13.5 mm	0.531 in	27 mH	2	0.846 in	21.5 mm	22.5 mm	0.886 "	500 mA	790 mOhm
TE Connectivity Raychem Cable Protection RN116-2-02-3M3		Through Hole	Horizontal	4 Lead	300 V	100 °C	-40 °C	Power Line	ENEC UR VDE	13.5 mm	0.531 in	3.3 mH	2	0.846 in	21.5 mm	22.5 mm	0.886 "	2 A	70 mOhm
TE Connectivity Raychem Cable Protection RN116-1-02-10M		Through Hole	Horizontal	4 Lead	300 V	100 °C	-40 °C	Power Line	ENEC UR VDE	13.5 mm	0.531 in	10 mH	2	0.846 in	21.5 mm	22.5 mm	0.886 "	1 A	210 mOhm
TE Connectivity Raychem Cable Protection RN116-1-02-15M		Through Hole	Horizontal	4 Lead	300 V	100 °C	-40 °C	Power Line	ENEC UR VDE	13.5 mm	0.531 in	10 kHz 15 mH	2	0.846 in	21.5 mm	22.5 mm	0.886 "	1 A	260 mOhm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 2.41
		10	$ 1.87
		25	$ 1.69
		50	$ 1.57
		100	$ 1.45
		250	$ 1.31
		500	$ 1.25

Description

General part information

RN116 Series

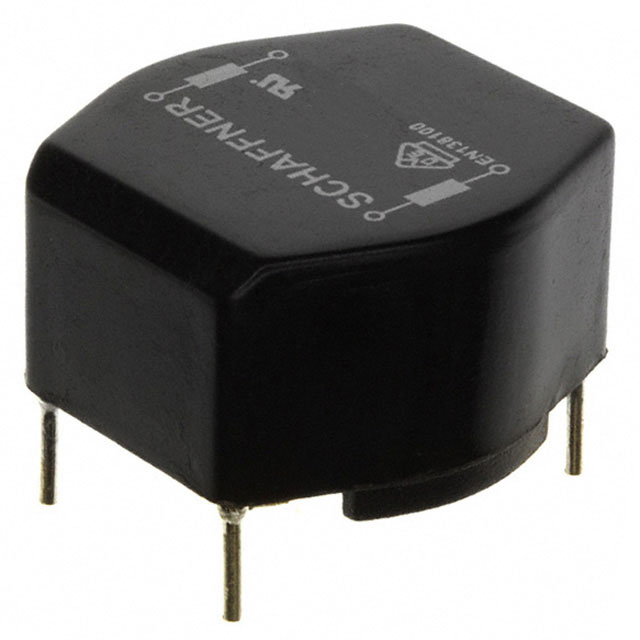

3.3 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 2A DCR 70mOhm (Typ)
