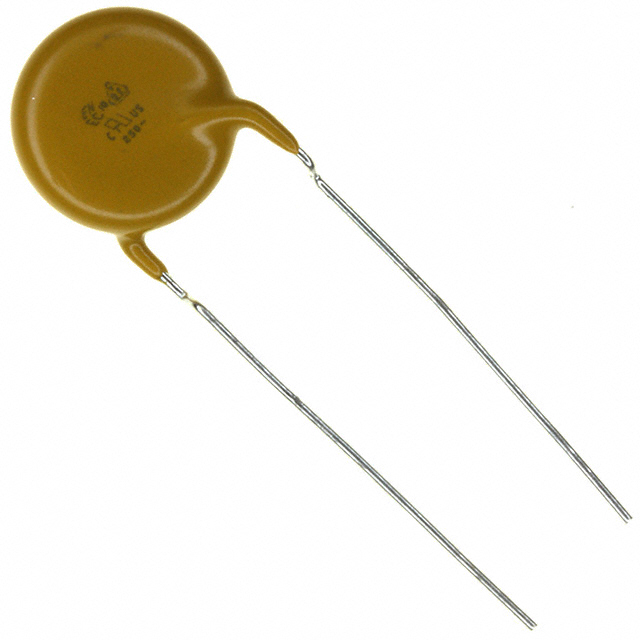

VY1 Series

Part	Mounting Type	Height - Seated (Max)	Lead Style	Applications	Voltage - Rated	Tolerance	Temperature Coefficient	Size / Dimension Diameter	Package / Case	Operating Temperature (Max)	Operating Temperature (Min)	Lead Spacing	Capacitance	Ratings
Vishay Dale VY1222M47Y5UG6TV0	Through Hole	0.63 in	Formed Leads - Kinked	Safety	760 V	20 %	Y5U (E)	0.472 in	Disc Radial	125 °C	-40 °C	0.394 in	2200 pF	X1 Y1
Vishay Dale VY1332M59Y5UQ6UV0	Through Hole	0.748 in	Formed Leads - Kinked	Safety	760 V	20 %	Y5U (E)	0.591 in	Disc Radial	125 °C	-40 °C	0.394 in	3300 pF	X1 Y1
Vishay Dale VY1101K31Y5SQ63V0	Through Hole	0.472 in	Formed Leads - Kinked	Safety	760 V	10 %	Y5S	0.315 in	Disc Radial	125 °C	-40 °C	0.394 in	100 pF	X1 Y1
Vishay Dale VY1152M33Y5VQ6UV0	Through Hole	0.492 in	Formed Leads - Kinked	Safety	500 V	20 %	Y5V (F)	0.335 in	Disc Radial	125 °C	-40 °C	0.394 in	1500 pF	X1 Y1
Vishay Dale VY1681K31Y5UQ6TV0	Through Hole	0.472 in	Formed Leads - Kinked	Safety	760 V	10 %	Y5U (E)	0.315 in	Disc Radial	125 °C	-40 °C	0.394 in	680 pF	X1 Y1
Vishay Dale VY1222M47Y5UQ6BV0	Through Hole	0.63 in	Formed Leads - Kinked	Safety	760 V	20 %	Y5U (E)	0.472 in	Disc Radial	125 °C	-40 °C	0.394 in	2200 pF	X1 Y1
Vishay Dale VY1152M33Y5VQ63V0	Through Hole	0.492 in	Formed Leads - Kinked	Safety	500 V	20 %	Y5V (F)	0.335 in	Disc Radial	125 °C	-40 °C	0.394 in	1500 pF	X1 Y1
Vishay Dale VY1151K31Y5SQ6UV0	Through Hole	0.472 in	Formed Leads - Kinked	Safety	760 V	10 %	Y5S	0.315 in	Disc Radial	125 °C	-40 °C	0.394 in	150 pF	X1 Y1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources
