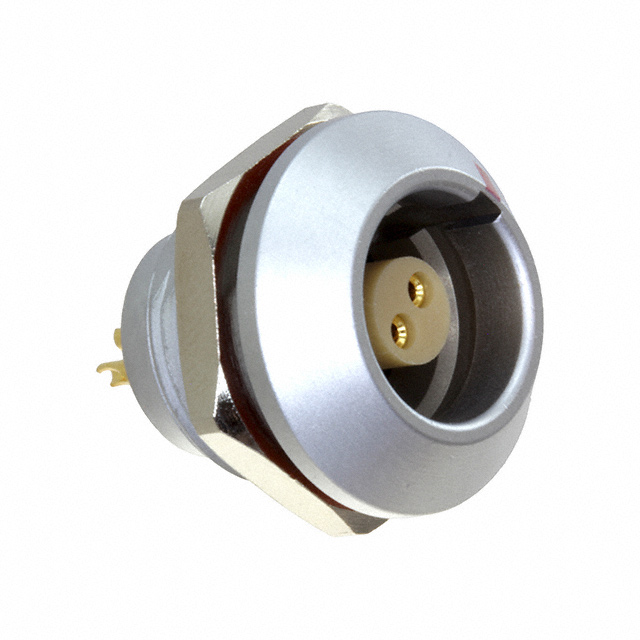

FLKB-02EGFS-GCP-001

Active

Amphenol LTW

CONN RCPT FMALE 2P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Amphenol LTW

CONN RCPT FMALE 2P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	FLKB-02EGFS-GCP-001

Applications	Testing Equipment & Measurement, Medical, Industrial, Telecommunications, Instrumentation
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	10 A
Fastening Type	Push-Pull
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyphenylene Sulfide (PPS)
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	G
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Copper Alloy
Shell Size - Insert	B-2
Shielding	Shielded
Voltage Rating	400 V

Part	Current Rating (Amps)	Contact Material	Primary Material	Connector Type	Shell Size - Insert	Color	Insert Material	Number of Positions	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Contact Finish - Mating	Shielding	Orientation	Mounting Feature	Ingress Protection	Fastening Type	Shell Finish	Shell Material
Amphenol LTW FLKB-02EGFS-GCP-001	10 A	Copper Alloy	Metal	Receptacle Female Sockets	B-2	Silver	Polyphenylene Sulfide (PPS)	2	400 V	125 °C	-40 °C	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	Gold	Shielded	G	Bulkhead - Rear Side Nut	IP68 - Dust Tight Waterproof	Push-Pull	Chrome	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Circular Connector Receptacle, Female Sockets Solder Cup
