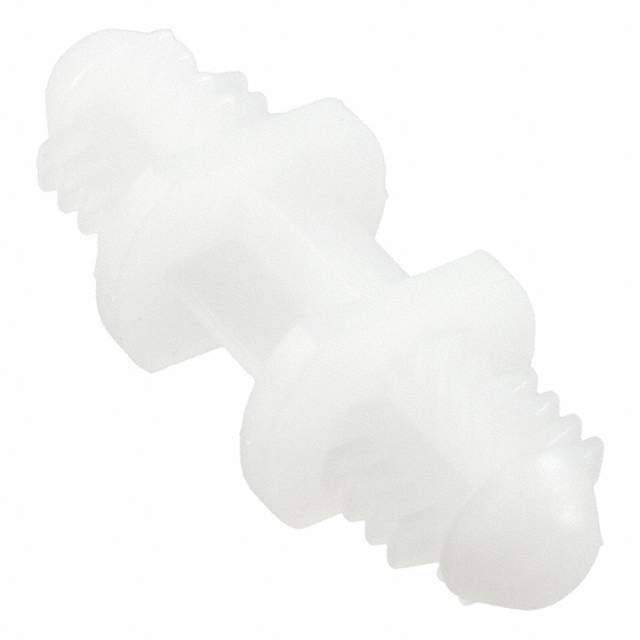

BHDF-10M-01

Obsolete

Essentra Access Solutions

BRD SPT BARBED FASTENR NYLN 10MM

Search across all available documentation for this part.

Obsolete

Essentra Access Solutions

BRD SPT BARBED FASTENR NYLN 10MM

Technical Specifications

Parameters and characteristics for this part

Specification	BHDF-10M-01

Between Board Height	0.394 in
Between Board Height	10 mm
Features	Blind Hole Mating
Holding Type	Barbed Fastener
Length - Overall [x]	27.4 mm
Length - Overall [x]	1.079 in
Material	Nylon
Mounting Hole Diameter	7.92 mm
Mounting Hole Diameter	0.3125 "
Mounting Hole Diameter	0.312 "
Mounting Panel Thickness	0.25 "
Mounting Panel Thickness	6.35 mm
Mounting Panel Thickness	0.25 "
Mounting Type	Barbed Fastener
Support Hole Diameter [diameter]	0.3125 in
Support Hole Diameter [diameter]	0.312 in
Support Hole Diameter [diameter]	7.92 mm
Support Panel Thickness	0.25 in
Support Panel Thickness	0.25 in
Support Panel Thickness	6.35 mm

Part	Support Panel Thickness	Support Panel Thickness	Support Panel Thickness	Mounting Type	Length - Overall [x]	Length - Overall [x]	Material	Mounting Panel Thickness	Mounting Panel Thickness	Mounting Panel Thickness	Mounting Hole Diameter	Mounting Hole Diameter	Mounting Hole Diameter	Between Board Height	Between Board Height	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Features	Holding Type
Essentra Access Solutions BHDF-10M-01	0.25 in	0.25 in	6.35 mm	Barbed Fastener	27.4 mm	1.079 in	Nylon	0.25 "	6.35 mm	0.25 "	7.92 mm	0.3125 "	0.312 "	0.394 in	10 mm	0.3125 in	0.312 in	7.92 mm	Blind Hole Mating	Barbed Fastener

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Board Support Barbed Fastener / Barbed Fastener Nylon 0.394" (10.00mm)

Technical documentation and resources

No documents available
