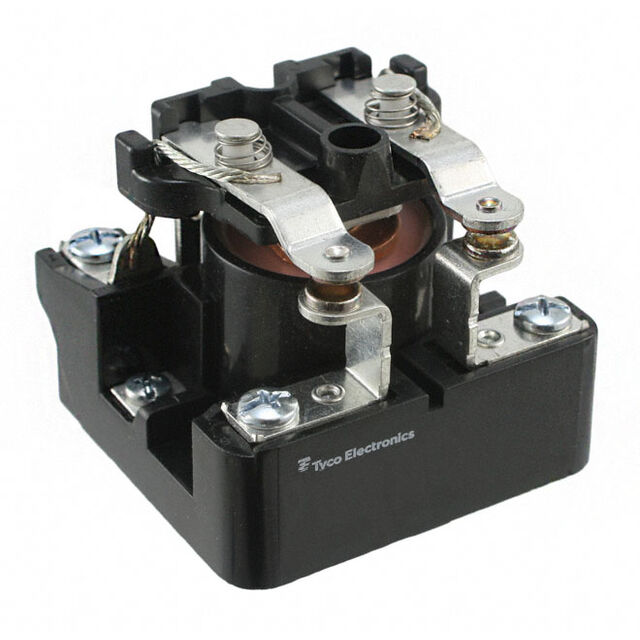

PRD-7DH0-24
ObsoleteTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE DPST 20A 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PRD-7DH0-24
ObsoleteTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE DPST 20A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PRD-7DH0-24 |
|---|---|
| Approval Agency | CSA, UL |
| Coil Current | 84 mA |
| Coil Insulation | Class B |
| Coil Resistance | 288 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | DPST-NO (2 Form A) |
| Contact Material | Silver (Ag) |
| Contact Rating (Current) | 20 A |
| Mounting Type | Chassis Mount |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 40 ms |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -55 °C |
| Relay Type | General Purpose |
| Release Time | 20 ms |
| Switching Voltage | 125 VDC, 600 VAC |
| Termination Style | Screw Terminal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
PRD-7DH0 Series
General Purpose Relay DPST-NO (2 Form A) 24VDC Coil Chassis Mount
