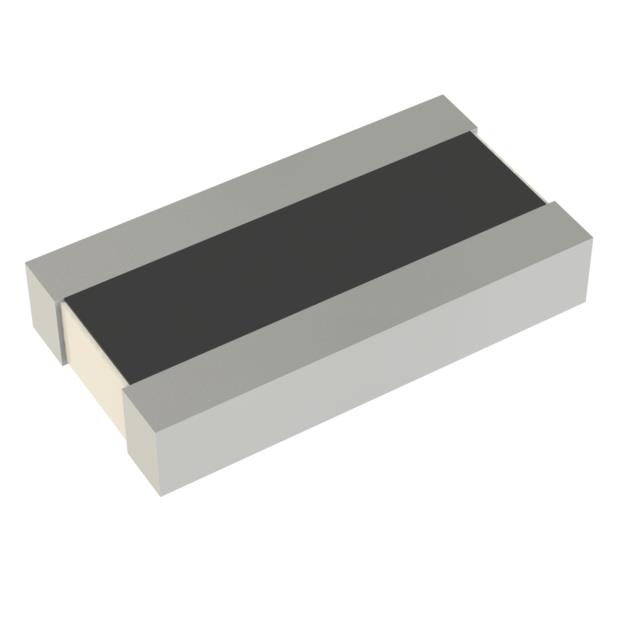

Specification	PE0612DKE7W0R01L

Composition	Metal Element
Features	Current Sense, Automotive AEC-Q200
Height - Seated (Max)	0.03 in
Number of Terminations	2
Operating Temperature (Max)	155 °C
Operating Temperature (Min)	-55 °C
Package / Case	0612, Wide 1206 (3216 Metric)
Package Name	0612
Power (Watts)	2 w
Ratings	AEC-Q200
Resistance	10 mOhms
Size / Dimension Length	0.063 in
Size / Dimension Width	0.126 in
Supplier Device Package	0612
Temperature Coefficient	50 ppm/°C
Tolerance	0.5 %

PE0612D Series

Part	Features	Ratings	Power (Watts)	Package / Case	Number of Terminations	Tolerance	Resistance	Temperature Coefficient	Composition	Operating Temperature (Max)	Operating Temperature (Min)	Package Name	Supplier Device Package	Height - Seated (Max)	Size / Dimension Width	Size / Dimension Length
YAGEO PE0612DKE7W0R01L	Automotive AEC-Q200 Current Sense	AEC-Q200	2 w	0612 Wide 1206 (3216 Metric)	2	0.5 %	10 mOhms	50 ppm/°C	Metal Element	155 °C	-55 °C	0612	0612	0.03 in	0.126 in	0.063 in
YAGEO PE0612DKF070R02L	Automotive AEC-Q200 Current Sense	AEC-Q200	1 W	0612 Wide 1206 (3216 Metric)	2	0.5 %	20 mOhms	100 ppm/°C	Metal Element	155 °C	-55 °C	0612	0612	0.03 in	0.126 in	0.063 in
