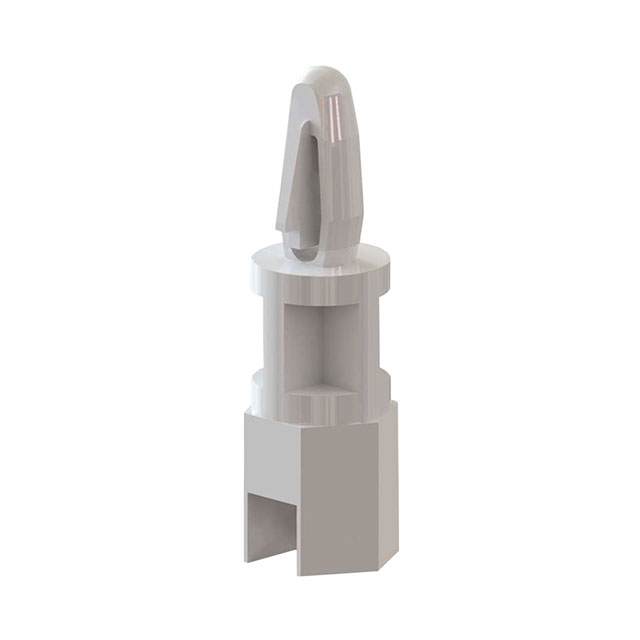

LCBS-TF-10-01
ActiveEssentra Access Solutions
BRD SPT SNAP LOCK SCREW MNT 5/8"
Deep-Dive with AI
Search across all available documentation for this part.
LCBS-TF-10-01
ActiveEssentra Access Solutions
BRD SPT SNAP LOCK SCREW MNT 5/8"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LCBS-TF-10-01 |
|---|---|
| Between Board Height | 15.88 mm |
| Between Board Height | 0.625 in |
| Between Board Height | 0.625 in |
| Features | 6-32 Thread |
| Holding Type | Snap Lock |
| Length - Overall [x] | 1.028 in |
| Length - Overall [x] | 26.1 mm |
| Material | Nylon |
| Mounting Type | Screw Mount |
| Support Hole Diameter [diameter] | 0.157 " |
| Support Hole Diameter [diameter] | 3.99 mm |
| Support Panel Thickness | 0.0625 " |
| Support Panel Thickness | 0.062 " |
| Support Panel Thickness | 1.57 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.63 | |
| 5 | $ 0.54 | |||
| 10 | $ 0.45 | |||
| 25 | $ 0.43 | |||
| 50 | $ 0.41 | |||
| 100 | $ 0.36 | |||
| 250 | $ 0.34 | |||
| 500 | $ 0.33 | |||
| 1000 | $ 0.31 | |||
Description
General part information
LCBS-TF Series
Board Support Snap Lock / Screw Mount Nylon 0.625" (15.88mm) 5/8"
Documents
Technical documentation and resources
No documents available
