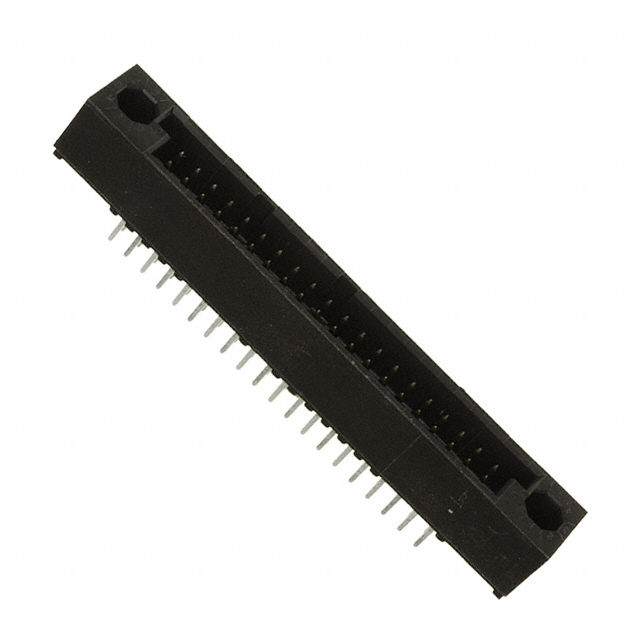

Specification	5532430-3

Color	Natural
Connector Style	High Density (HDC, HDI, HPC)
Connector Type	Header, Male Pins
Contact Finish	Gold
Contact Finish Thickness	30 µin
Features	Mating Guide
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	40
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-65 °C
Pitch	0.1 in
Termination	Solder

5532430 Series

Part	Operating Temperature (Max)	Operating Temperature (Min)	Material Flammability Rating	Number of Rows	Color	Connector Type	Mounting Type	Number of Positions Loaded	Contact Finish	Features	Termination	Pitch	Connector Style	Number of Positions	Contact Finish Thickness
TE Connectivity AMP Connectors 1-5532430-4	125 °C	-65 °C	UL94 V-0	2	Natural	Header Male Pins	Through Hole	All	Gold	Mating Guide	Solder	0.1 in	High Density (HDC HDI HPC)	150	30 µin
TE Connectivity AMP Connectors 5532430-3	125 °C	-65 °C	UL94 V-0	2	Natural	Header Male Pins	Through Hole	All	Gold	Mating Guide	Solder	0.1 in	High Density (HDC HDI HPC)	40	30 µin
