1241.1113.7097
ActiveSCHURTER Inc.

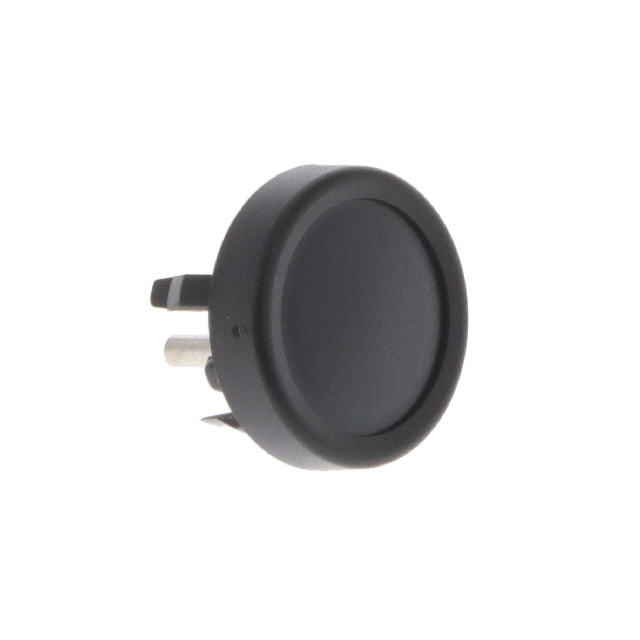

SWITCH PUSH SPST-NO 125MA 48V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1241.1113.7097
ActiveSCHURTER Inc.
SWITCH PUSH SPST-NO 125MA 48V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1241.1113.7097 | 1241.1113 Series |
|---|---|---|
| Actuator Marking | No Marking | No Marking |
| Actuator Type | Flush, Button, Round | Flush, Button, Round |
| Circuit | SPST-NO | SPST-NO |
| Color - Actuator/Cap | Black | Blue, White, Black, Green |
| Current Rating (Amps) | 125 mA | 125 mA |
| Electrical Life | 1000000 Cycles | 1000000 Cycles |
| Features | Tactile Feedback | Tactile Feedback |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant |
| Mechanical Life | 1000000 Cycles | 1000000 Cycles |
| Mounting Type | Panel Mount, Snap-In | Panel Mount, Snap-In |
| Operating Temperature [Max] | 60 °C | 60 °C |
| Operating Temperature [Min] | -25 °C | -25 °C |
| Panel Cutout Dimensions [diameter] | 13 mm | 13 mm |
| Switch Function | Off-Mom | Off-Mom |
| Termination Style | Solder Lug | Solder Lug |
| Type | Standard | Standard |
| Voltage Rating - DC | 48 V | 48 V |
1241.1113 Series
SWITCH PUSH SPST-NO 125MA 48V
| Part | Ingress Protection | Mechanical Life | Current Rating (Amps) | Circuit | Actuator Type | Termination Style | Actuator Marking | Operating Temperature [Min] | Operating Temperature [Max] | Color - Actuator/Cap | Electrical Life | Panel Cutout Dimensions [diameter] | Mounting Type | Switch Function | Features | Type | Voltage Rating - DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SCHURTER Inc. 1241.1113.7094 | IP65 - Dust Tight, Water Resistant | 1000000 Cycles | 125 mA | SPST-NO | Button, Flush, Round | Solder Lug | No Marking | -25 °C | 60 °C | Blue | 1000000 Cycles | 13 mm | Panel Mount, Snap-In | Off-Mom | Tactile Feedback | Standard | 48 V |
SCHURTER Inc. 1241.1113.7098 | IP65 - Dust Tight, Water Resistant | 1000000 Cycles | 125 mA | SPST-NO | Button, Flush, Round | Solder Lug | No Marking | -25 °C | 60 °C | White | 1000000 Cycles | 13 mm | Panel Mount, Snap-In | Off-Mom | Tactile Feedback | Standard | 48 V |
SCHURTER Inc. 1241.1113.7097 | IP65 - Dust Tight, Water Resistant | 1000000 Cycles | 125 mA | SPST-NO | Button, Flush, Round | Solder Lug | No Marking | -25 °C | 60 °C | Black | 1000000 Cycles | 13 mm | Panel Mount, Snap-In | Off-Mom | Tactile Feedback | Standard | 48 V |
SCHURTER Inc. 1241.1113.7095 | IP65 - Dust Tight, Water Resistant | 1000000 Cycles | 125 mA | SPST-NO | Button, Flush, Round | Solder Lug | No Marking | -25 °C | 60 °C | Green | 1000000 Cycles | 13 mm | Panel Mount, Snap-In | Off-Mom | Tactile Feedback | Standard | 48 V |
SCHURTER Inc. 1241.1113.6096 | IP65 - Dust Tight, Water Resistant | 1000000 Cycles | 125 mA | SPST-NO | Button, Flush, Round | Solder Lug | No Marking | -25 °C | 60 °C | 1000000 Cycles | 13 mm | Panel Mount, Snap-In | Off-Mom | Tactile Feedback | Standard | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.54 | |
| 50 | $ 8.17 | |||
| 100 | $ 6.37 | |||
Description
General part information
1241.1113 Series
Pushbutton Switch SPST-NO Standard Panel Mount, Snap-In
