FHG.0K.307.CLAC50Z

Active

LEMO

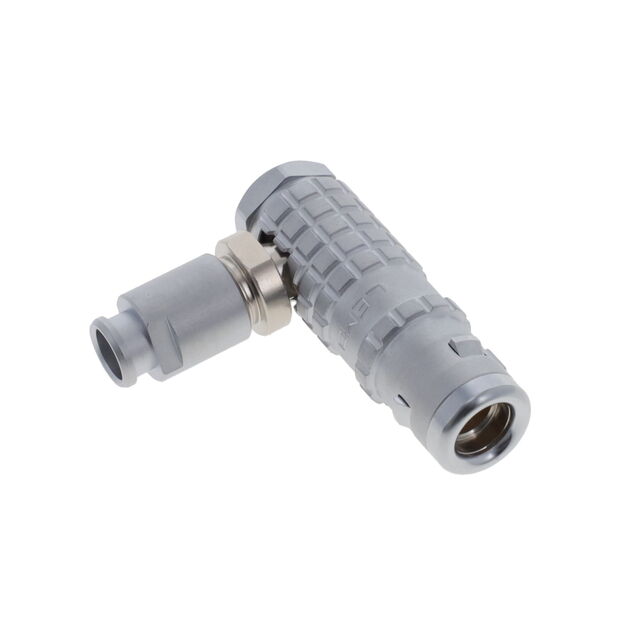

CONN PLUG MALE 7P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FHG.0K.307.CLAC50Z

Active

LEMO

CONN PLUG MALE 7P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 124.95
		10	$ 114.66
		25	$ 110.25
		50	$ 106.57

Description

General part information

FHG.0K Series

7 Position Circular Connector Plug, Male Pins Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FHG.0K.307.CLAC50Z	FHG.0K Series

Backshell Material, Plating	Brass, Chrome	Brass, Chrome, Black Chrome
Cable Opening	-	0.142 - 0.157 in
Cable Opening	-	4 mm
Cable Opening	-	3.6 mm
Cable Opening	-	3.5 mm
Cable Opening	-	0.098 - 0.138 in
Cable Opening	-	0.083 - 0.122 in
Cable Opening	-	2.1 - 3.1 mm
Cable Opening	-	2.5 - 3 mm
Cable Opening [Max] [diameter]	5 mm	4.5 - 5 mm
Cable Opening [Max] [diameter]	0.197 in	0.177 - 0.197 in
Cable Opening [Min] [diameter]	4.6 mm	4.1 - 4.6 mm
Cable Opening [Min] [diameter]	0.181 in	0.161 - 0.181 in
Color	Silver	Silver, Black
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	1 µm	1 µm
Contact Finish Thickness - Mating	39.4 µin	39.4 µin
Contact Material	Brass	Brass
Current Rating (Amps)	2.5 A	2 - 10 A
Fastening Type	Push-Pull	Push-Pull
Features	Backshell	Backshell
Ingress Protection	IP66/IP68	IP66/IP68
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line), Right Angle	Free Hanging (In-Line), Right Angle
Number of Positions	7	2 - 9
Operating Temperature [Max]	200 °C	200 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	G	G
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	307	302 - 309
Shielding	Shielded	Shielded
Termination	-	Crimp

FHG.0K Series

CONN PLUG MALE 4POS GOLD CRIMP

Part	Orientation	Mounting Type	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Ingress Protection	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [custom]	Features	Contact Material	Termination	Insert Material	Color	Shell Finish	Number of Positions	Fastening Type	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Shell Material	Shell Size - Insert	Primary Material	Backshell Material, Plating	Shielding	Contact Finish - Mating	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]
LEMO FHG.0K.304.CYCC40	G	Free Hanging (In-Line), Right Angle	7 A	1 µm	39.4 µin	IP66/IP68	0.142 in, 0.157 in	4 mm	3.6 mm	Backshell	Brass	Crimp	Polyetheretherketone (PEEK)	Silver	Chrome	4	Push-Pull	Male Pins, Plug	-55 °C	200 °C	UL94 V-0	Brass	304	Metal	Brass, Chrome	Shielded	Gold
LEMO FHG.0K.304.CLAC35Z	G	Free Hanging (In-Line), Right Angle	7 A	1 µm	39.4 µin	IP66/IP68				Backshell	Brass		Polyetheretherketone (PEEK)	Silver	Chrome	4	Push-Pull	Male Pins, Plug	-55 °C	200 °C	UL94 V-0	Brass	304	Metal	Brass, Chrome	Shielded	Gold	3.5 mm	0.138 in	0.122 in	3.1 mm
LEMO FHG.0K.304.CLAC30	G	Free Hanging (In-Line), Right Angle	7 A	1 µm	39.4 µin	IP66/IP68				Backshell	Brass		Polyetheretherketone (PEEK)	Silver	Chrome	4	Push-Pull	Male Pins, Plug	-55 °C	200 °C	UL94 V-0	Brass	304	Metal	Brass, Chrome	Shielded	Gold		0.118 in	0.102 in	2.6 mm	3 mm
LEMO FHG.0K.307.CLAC50Z	G	Free Hanging (In-Line), Right Angle	2.5 A	1 µm	39.4 µin	IP66/IP68				Backshell	Brass		Polyetheretherketone (PEEK)	Silver	Chrome	7	Push-Pull	Male Pins, Plug	-55 °C	200 °C	UL94 V-0	Brass	307	Metal	Brass, Chrome	Shielded	Gold						4.6 mm	5 mm	0.181 in	0.197 in
LEMO FHG.0K.306.KLAC50	G	Free Hanging (In-Line), Right Angle	2.5 A	1 µm	39.4 µin	IP66/IP68				Backshell	Brass		Polyetheretherketone (PEEK)	Black		6	Push-Pull	Male Pins, Plug	-55 °C	200 °C	UL94 V-0	Brass	306	Metal	Black Chrome, Brass	Shielded	Gold						4.6 mm	5 mm	0.181 in	0.197 in
LEMO FHG.0K.302.CLAC40Z	G	Free Hanging (In-Line), Right Angle	10 A	1 µm	39.4 µin	IP66/IP68	0.142 in, 0.157 in	4 mm	3.6 mm	Backshell	Brass		Polyetheretherketone (PEEK)	Silver	Chrome	2	Push-Pull	Male Pins, Plug	-55 °C	200 °C	UL94 V-0	Brass	302	Metal	Brass, Chrome	Shielded	Gold
LEMO FHG.0K.303.CYCC50Z	G	Free Hanging (In-Line), Right Angle	8 A	1 µm	39.4 µin	IP66/IP68				Backshell	Brass	Crimp	Polyetheretherketone (PEEK)	Silver	Chrome		Push-Pull	Male Pins, Plug	-55 °C	200 °C	UL94 V-0	Brass	303	Metal	Brass, Chrome	Shielded	Gold						4.6 mm	5 mm	0.181 in	0.197 in
LEMO FHG.0K.306.CLAC45Z	G	Free Hanging (In-Line), Right Angle	2.5 A	1 µm	39.4 µin	IP66/IP68				Backshell	Brass		Polyetheretherketone (PEEK)	Silver	Chrome	6	Push-Pull	Male Pins, Plug	-55 °C	200 °C	UL94 V-0	Brass	306	Metal	Brass, Chrome	Shielded	Gold						4.1 mm	4.5 mm	0.161 in	0.177 in
LEMO FHG.0K.304.CYCC40Z	G	Free Hanging (In-Line), Right Angle	7 A	1 µm	39.4 µin	IP66/IP68	0.142 in, 0.157 in	4 mm	3.6 mm	Backshell	Brass	Crimp	Polyetheretherketone (PEEK)	Silver	Chrome	4	Push-Pull	Male Pins, Plug	-55 °C	200 °C	UL94 V-0	Brass	304	Metal	Brass, Chrome	Shielded	Gold
LEMO FHG.0K.303.CLAC35	G	Free Hanging (In-Line), Right Angle	8 A	1 µm	39.4 µin	IP66/IP68				Backshell	Brass		Polyetheretherketone (PEEK)	Silver	Chrome		Push-Pull	Male Pins, Plug	-55 °C	200 °C	UL94 V-0	Brass	303	Metal	Brass, Chrome	Shielded	Gold	3.5 mm	0.138 in	0.122 in	3.1 mm
