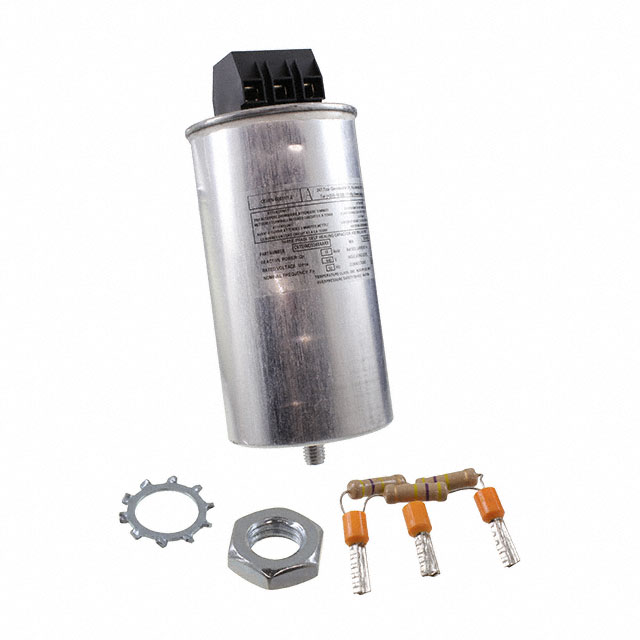

Specification	C9TS6MD5548AARX

Applications	Power Factor Correction (PFC), 3 Phase
Capacitance	54.8 µF
Dielectric Material	Metallized, Polypropylene (PP)
Height - Seated (Max)	6.378 in
Lead Spacing	0.748 in
Mounting Type	Chassis, Stud Mount
Operating Temperature (Max)	55 °C
Operating Temperature (Min)	-25 °C
Package / Case	Can, Radial
Size / Dimension Diameter	3.346 in
Termination	Terminal Block
Tolerance (Negative)	5 %
Tolerance (Positive)	15 %
Voltage Rating - AC	440 V

C9TS6MD Series

Part	Operating Temperature (Min)	Operating Temperature (Max)	Dielectric Material	Capacitance	Package / Case	Height - Seated (Max)	Applications	Voltage Rating - AC	Size / Dimension Diameter	Mounting Type	Lead Spacing	Termination	Tolerance (Negative)	Tolerance (Positive)
KEMET C9TS6MD6110AARX	-25 °C	55 °C	Metallized Polypropylene (PP)	110 µF	Can Radial	11.102 in	3 Phase Power Factor Correction (PFC)	440 V	2.953 in	Chassis Stud Mount	0.748 in	Terminal Block	5 %	15 %
KEMET C9TS6MD5960AARX	-25 °C	55 °C	Metallized Polypropylene (PP)	96 µF	Can Radial	11.102 in	3 Phase Power Factor Correction (PFC)	440 V	2.953 in	Chassis Stud Mount	0.748 in	Terminal Block	5 %	15 %
KEMET C9TS6MD5685AARX	-25 °C	55 °C	Metallized Polypropylene (PP)	68.5 µF	Can Radial	9.134 in	3 Phase Power Factor Correction (PFC)	440 V	2.953 in	Chassis Stud Mount	0.748 in	Terminal Block	5 %	15 %
KEMET C9TS6MD5274AARX	-25 °C	55 °C	Metallized Polypropylene (PP)	27.4 µF	Can Radial	6.378 in	3 Phase Power Factor Correction (PFC)	440 V	2.953 in	Chassis Stud Mount	0.748 in	Terminal Block	5 %	15 %
KEMET C9TS6MD5830AARX	-25 °C	55 °C	Metallized Polypropylene (PP)	83 µF	Can Radial	9.134 in	3 Phase Power Factor Correction (PFC)	440 V	3.346 in	Chassis Stud Mount	0.748 in	Terminal Block	5 %	15 %
KEMET C9TS6MD5548AARX	-25 °C	55 °C	Metallized Polypropylene (PP)	54.8 µF	Can Radial	6.378 in	3 Phase Power Factor Correction (PFC)	440 V	3.346 in	Chassis Stud Mount	0.748 in	Terminal Block	5 %	15 %
KEMET C9TS6MD6137AARX	-25 °C	55 °C	Metallized Polypropylene (PP)	137 µF	Can Radial	11.102 in	3 Phase Power Factor Correction (PFC)	440 V	3.346 in	Chassis Stud Mount	0.748 in	Terminal Block	5 %	15 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet

C9TS6MD5548AARX Spec

KEM_F3051_C9T_RADIAL.pdf

C9TS6MD5548AARX | Datasheet
