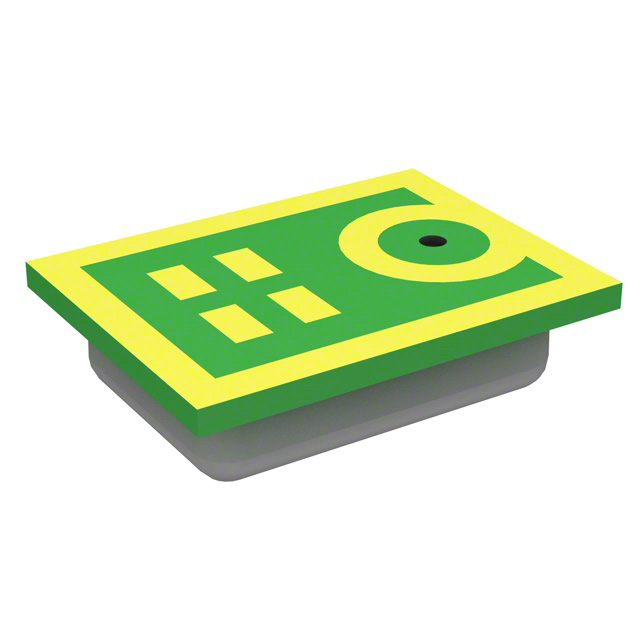

INMP522ACEZ-R7

Obsolete

TDK InvenSense

MIC MEMS DIGITAL PDM OMNI -26DB

Search across all available documentation for this part.

Obsolete

TDK InvenSense

MIC MEMS DIGITAL PDM OMNI -26DB

Technical Specifications

Parameters and characteristics for this part

MIC MEMS DIGITAL PDM OMNI -26DB

Part	Sensitivity	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	S/N Ratio	Current - Supply	Termination	Type	Voltage Range [Min]	Voltage Range [Max]	Port Location	Shape	Height (Max) [Max]	Height (Max) [Max]	Output Type	Direction	Frequency Range [Min]	Frequency Range [Max]
TDK InvenSense INMP522ACEZ-R7	-26 dB	4 mm	3 mm	0.118 in	0.157 "	65 dB	1.4 mA	Solder Pads	MEMS (Silicon)	1.62 V	3.63 V	Bottom	Rectangular	0.043 in	1.1 mm	Digital, PDM	Omnidirectional	75 Hz	20 kHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

75 Hz ~ 20 kHz Digital, PDM Microphone MEMS (Silicon) 1.62 V ~ 3.63 V Omnidirectional (-26dB ±1dB @ 94dB SPL) Solder Pads

Technical documentation and resources

No documents available
