829068-1

Active

TE Connectivity AMP Connectors

HD SCHRAUB-SICHERG

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

HD SCHRAUB-SICHERG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

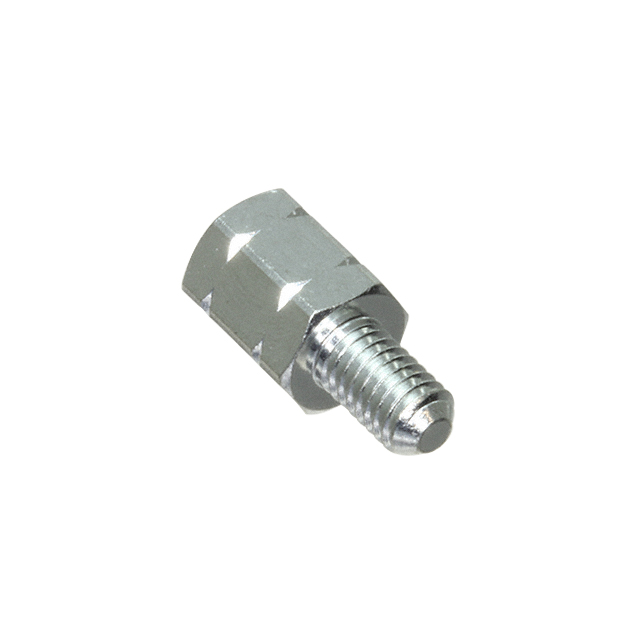

Jackscrew Socket For D-Sub Front Panel Mount Connectors

Technical documentation and resources

Specification	829068-1	829068 Series

Accessory Type	Jackscrew Socket	Jackscrew Socket
For Use With/Related Products	D-Sub Front Panel Mount Connectors	D-Sub Front Panel Mount Connectors
Length - Below Head	5 mm	3 - 5 mm
Length - Below Head	0.197 in	0.118 - 0.197 in
Length - Below Head	-	8 mm
Length - Below Head	-	0.315 in
Length - Threaded Portion Below Head	-	0.315 in
Length - Threaded Portion Below Head	-	8 mm
Length - Threaded Portion Below Head [x]	5 mm	3 - 5 mm
Length - Threaded Portion Below Head [x]	0.197 in	0.118 - 0.197 in
Thread Size	M3 Socket, M3 Screw	M3 Socket, M3 Screw

Part	Accessory Type	Length - Threaded Portion Below Head [x]	Length - Threaded Portion Below Head [x]	Length - Below Head	Length - Below Head	For Use With/Related Products	Thread Size	Length - Below Head [custom]	Length - Below Head [custom]	Length - Threaded Portion Below Head	Length - Threaded Portion Below Head
TE Connectivity AMP Connectors 829068-1	Jackscrew Socket	5 mm	0.197 in	5 mm	0.197 in	D-Sub Front Panel Mount Connectors	M3 Screw, M3 Socket
TE Connectivity AMP Connectors 4-829068-1	Jackscrew Socket					D-Sub Front Panel Mount Connectors	M3 Screw, M3 Socket	8 mm	0.315 in	0.315 in	8 mm
TE Connectivity AMP Connectors 3-829068-1	Jackscrew Socket	3 mm	0.118 "	3 mm	0.118 in	D-Sub Front Panel Mount Connectors	M3 Screw, M3 Socket
