8729 009U1000

Obsolete

Belden Inc.

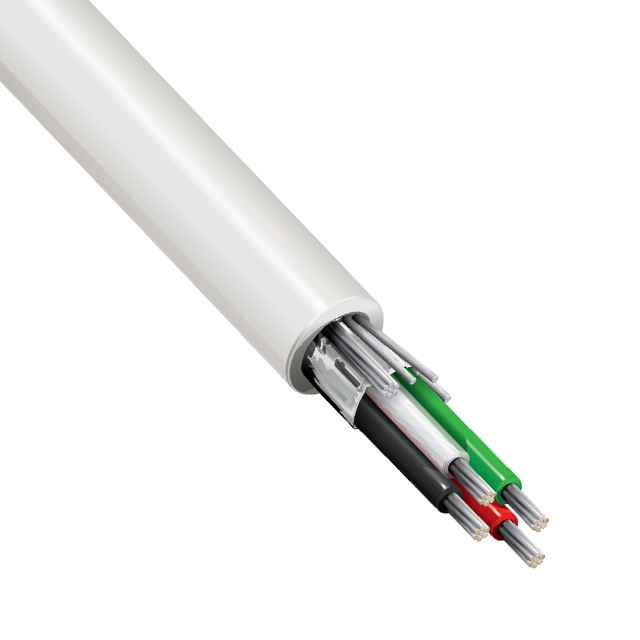

CABLE 4COND 22AWG WHT SHLD 1000'

Search across all available documentation for this part.

Obsolete

Belden Inc.

CABLE 4COND 22AWG WHT SHLD 1000'

Technical Specifications

Parameters and characteristics for this part

Specification	8729 009U1000

Cable Type	Multi-Conductor
Conductor Insulation	Polyethylene (PE)
Conductor Material	Copper, Tinned
Conductor Strand	34 AWG
Conductor Strand [custom]	19 Strands
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.257 in
Jacket (Insulation) Diameter [diameter]	6.53 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.295 mm
Jacket (Insulation) Thickness	0.051 in
Length	1000 ft
Length	304.8 m
Number of Conductors	4
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-40 °C
Ratings	UL Style 2094
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Audio, Instrumentation, Control
Voltage	300 V
Wire Gauge	22 AWG

Part	Shield Coverage	Ratings	Shield Material	Length [x]	Length [x]	Conductor Insulation	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Voltage	Usage	Cable Type	Shield Type	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Wire Gauge	Conductor Material	Number of Conductors	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Material	Features	Conductor Strand [custom]	Conductor Strand	Length	Length
Belden Inc. 8729 009U500	100 %	UL Style 2094	Aluminum	500 '	152.4 m	Polyethylene (PE)	0.257 in	6.53 mm	300 V	Audio Control Instrumentation	Multi-Conductor	Foil	1.295 mm	0.051 in	22 AWG	Copper Tinned	4	-40 °C	75 ░C	Poly-Vinyl Chloride (PVC)	Drain Wire	19 Strands	34 AWG
Belden Inc. 8729 009500	100 %	UL Style 2094	Aluminum	500 '	152.4 m	Polyethylene (PE)	0.257 in	6.53 mm	300 V	Audio Control Instrumentation	Multi-Conductor	Foil	1.295 mm	0.051 in	22 AWG	Copper Tinned	4	-40 °C	75 ░C	Poly-Vinyl Chloride (PVC)	Drain Wire	19 Strands	34 AWG
Belden Inc. 8729 009U1000	100 %	UL Style 2094	Aluminum			Polyethylene (PE)	0.257 in	6.53 mm	300 V	Audio Control Instrumentation	Multi-Conductor	Foil	1.295 mm	0.051 in	22 AWG	Copper Tinned	4	-40 °C	75 ░C	Poly-Vinyl Chloride (PVC)	Drain Wire	19 Strands	34 AWG	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

4 Conductor Multi-Conductor Cable White 22 AWG Foil 1000.0' (304.8m)
