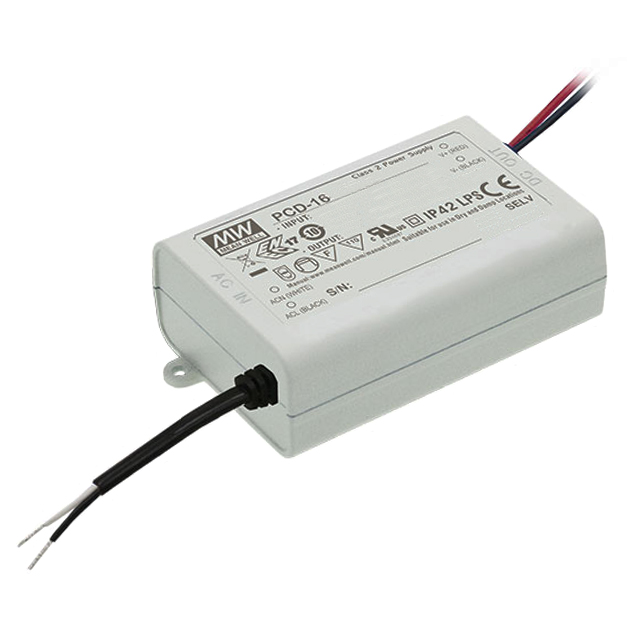

PCD-16-350A

Active

MEAN WELL USA Inc.

LED DRVR CC AC/DC 24-48V 350MA

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

LED DRVR CC AC/DC 24-48V 350MA

Technical Specifications

Parameters and characteristics for this part

Part	Topology	Power (Watts)	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Input (Min) [Min]	Type	Voltage - Output [Min]	Voltage - Output [Max]	Efficiency	Voltage - Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Ratings	Number of Outputs	Features	Voltage - Input (Max) [Max]	Approval Agency	Current - Output (Max) [Max]	Termination Style	Dimming
MEAN WELL USA Inc. PCD-16-1400B	AC DC Converter	17 W	Chassis Mount	3.31 "	57 mm	29.5 mm	84 mm	2.24 "	1.16 "	180 VAC	Constant Current	8 V	12 V	80 %	3750 V	-30 ░C	60 °C	IP42	1	OTP SCP	295 VAC	CB CE cURus	1.4 A	Wire Leads	TRIAC
MEAN WELL USA Inc. PCD-16-350A	AC DC Converter	17 W	Chassis Mount	3.31 "	57 mm	29.5 mm	84 mm	2.24 "	1.16 "	90 VAC	Constant Current	24 V	48 V		3750 V	-30 ░C	60 °C	IP42	1	OTP SCP	135 VAC		350 mA	Wire Leads	TRIAC
MEAN WELL USA Inc. PCD-16-1050B	AC DC Converter	17 W	Chassis Mount	3.31 "	57 mm	29.5 mm	84 mm	2.24 "	1.16 "	180 VAC	Constant Current	12 V	16 V	80.5 %	3750 V	-30 ░C	60 °C	IP42	1	OTP SCP	295 VAC	CB CE cURus	1.05 A	Wire Leads	TRIAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

350mA 24 ~ 48V Constant Current LED Driver AC DC Converter Topology 1 Output
