235S2

Active

Conxall/Switchcraft

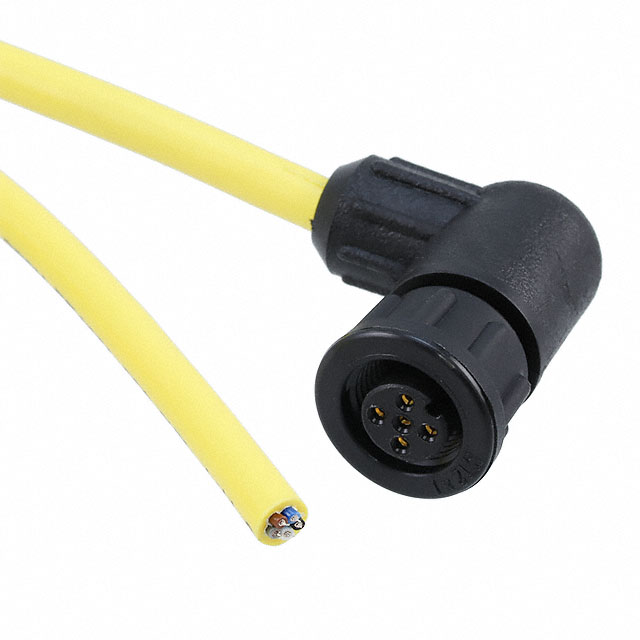

CBL CIRC 5POS FEM TO WIRE 6.56'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Sensor-Link Series Catalog

235S2

Active

Conxall/Switchcraft

CBL CIRC 5POS FEM TO WIRE 6.56'

Deep-Dive with AI

DocumentsDatasheet Sensor-Link Series Catalog

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 39.20
		10	$ 34.33

Description

General part information

- Series

Cable Assembly 6.56' (2.00m)

Documents

Technical documentation and resources

Datasheet

Sensor-Link Series Catalog

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	235S2	- Series

1st Connector Gender	Female Sockets	Female Sockets, Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
1st Connector Number of Positions	5	2 - 5
1st Connector Number of Positions Loaded	All	All
1st Connector Orientation [custom]	Keyed	Keyed
1st Connector Type	Plug, Right Angle	Plug, Right Angle, Plug, Receptacle, Receptacle, Right Angle
2nd Connector Type	Wire Leads	Wire Leads
Accessory Type	-	Cap (Cover), Flange Gasket, O-Ring, Coupling Nut, Dust, Hex Nut
Assembly Configuration	Standard	Standard
Cable Material	Polyvinyl Chloride (PVC)	Polyvinyl Chloride (PVC)
Cable Type	Round	Round
Color	Yellow	Black, Yellow
Features	-	Metal Chain with Ring, Contains Strap with Ring, Winged, Square
For Use With/Related Products	-	MIL-E-QUAL® Plug, MIL-E-QUAL® Receptacle, Multi-Con-X® Plug, Mega-Con-X® Connectors, Maxi-Con-X® Plug, Multi-Con-X® Connectors, Maxi-Con-X® Receptacle, Mega-Con-X® Plug, Micro-Con-X® Receptacle, Micro-Con-X® Plug
Ingress Protection	IP67 - Dust Tight, Waterproof, NEMA 6P, IP68 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof, NEMA 6P, IP68 - Dust Tight, Waterproof
Length [x]	2 m	1 - 4 m
Length [x]	6.56 ft	3.28 - 13.12 ft
Material	-	Nylon, Neoprene Rubber, Rubber
Shell Size - Insert	-	95 - 96
Shell Size - Insert	-	10 - 26
Shell Size - Insert	-	18 - 28
Shielding	Unshielded	Unshielded
Usage	Industrial Environments	Industrial Environments

- Series

CONN COVER 24-96 BLACK

Part	Features	Color	Shell Size - Insert [Max]	Shell Size - Insert [Min]	For Use With/Related Products	Accessory Type	Material	Ingress Protection	Assembly Configuration	1st Connector Type	Length [x]	Length [x]	1st Connector Orientation [custom]	1st Connector Number of Positions	1st Connector Number of Positions Loaded	1st Connector Gender	Cable Type	2nd Connector Type	Cable Material	1st Connector Mounting Type	Usage	Shielding	Shell Size - Insert
Conxall/Switchcraft 42496	Metal Chain with Ring	Black	96	24	MIL-E-QUAL® Plug	Cap (Cover)	Nylon
Conxall/Switchcraft 235S2		Yellow						IP67 - Dust Tight, Waterproof, IP68 - Dust Tight, Waterproof, NEMA 6P	Standard	Plug, Right Angle	2 m	6.56 ft	Keyed	5	All	Female Sockets	Round	Wire Leads	Polyvinyl Chloride (PVC)	Free Hanging (In-Line)	Industrial Environments	Unshielded
Conxall/Switchcraft 304S1		Yellow						IP67 - Dust Tight, Waterproof, IP68 - Dust Tight, Waterproof, NEMA 6P	Standard	Plug	1 m	3.28 ft	Keyed	4	All	Female Sockets	Round	Wire Leads	Polyvinyl Chloride (PVC)	Free Hanging (In-Line)	Industrial Environments	Unshielded
Conxall/Switchcraft 202S4		Yellow						IP67 - Dust Tight, Waterproof, IP68 - Dust Tight, Waterproof, NEMA 6P	Standard	Plug	4 m	13.12 ft	Keyed	2	All	Female Sockets	Round	Wire Leads	Polyvinyl Chloride (PVC)	Free Hanging (In-Line)	Industrial Environments	Unshielded
Conxall/Switchcraft 41893		Black			MIL-E-QUAL® Receptacle	Flange Gasket	Neoprene Rubber																18
Conxall/Switchcraft 42095	Metal Chain with Ring	Black	95	20	MIL-E-QUAL® Receptacle	Cap (Cover)	Nylon
Conxall/Switchcraft 42696	Metal Chain with Ring	Black	96	26	MIL-E-QUAL® Plug	Cap (Cover)	Nylon
Conxall/Switchcraft 4290		Black			Multi-Con-X® Plug	O-Ring	Neoprene Rubber
Conxall/Switchcraft 6282		Black				Coupling Nut	Nylon
Conxall/Switchcraft 24295	Contains Strap with Ring	Black			Mega-Con-X® Connectors	Cap (Cover), Dust	Neoprene Rubber
