M5377 SL002

Active

ALPHA WIRE

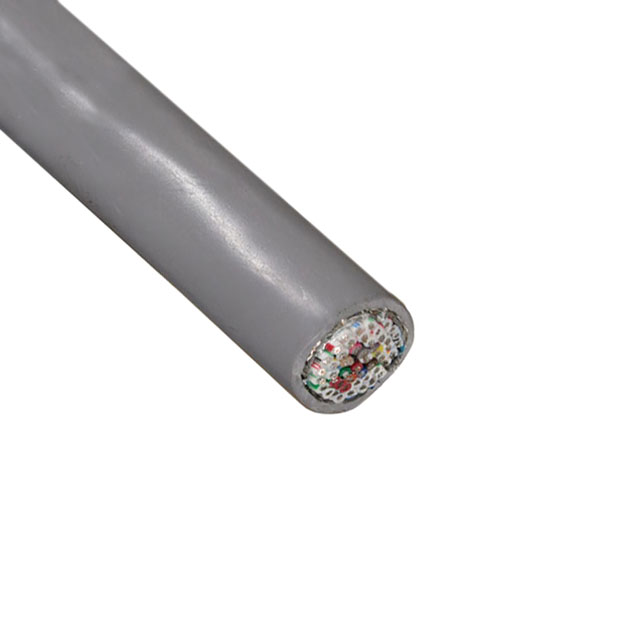

CABLE 50COND 20AWG SHLD

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 50COND 20AWG SHLD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 16.08

General part information

50 Conductor Multi-Conductor Cable Slate 20 AWG Foil, Braid 500.0' (152.4m)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	M5377 SL002	M5377 Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	28	28
Conductor Strand [custom]	7	7
Features	Rip Cord, Drain Wire	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	18.11 mm	18.11 mm
Jacket (Insulation) Diameter [diameter]	0.713 in	0.713 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.346 mm	1.346 mm
Jacket (Insulation) Thickness	0.053 in	0.053 in
Jacket Color	Slate	Slate
Length	-	914.4 m
Length	-	3000 ft
Length [x]	500 '	500 '
Length [x]	152.4 m	152.4 m
Number of Conductors	50	50
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-20 C	-20 C
Ratings	UL Style 2464	UL Style 2464
Shield Coverage	70 %, 100 %	70 - 100 %
Shield Material	Copper, Tinned, Aluminum	Copper, Tinned, Aluminum
Shield Type	Foil, Braid	Foil, Braid
Voltage	300 V	300 V
Wire Gauge	20 AWG	20 AWG

CABLE 50COND 20AWG SHLD

Part	Wire Gauge	Shield Coverage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Shield Material	Ratings	Features	Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Jacket Color	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Insulation	Shield Type	Length [x]	Length [x]	Number of Conductors	Jacket (Insulation) Material	Length	Length
ALPHA WIRE M5377 SL002	20 AWG	70 %, 100 %	18.11 mm	0.713 in	Copper, Tinned	Aluminum, Copper, Tinned	UL Style 2464	Drain Wire, Rip Cord	300 V	-20 C	80 C	1.346 mm	0.053 in	Multi-Conductor	Slate	28	7	Poly-Vinyl Chloride (PVC)	Braid, Foil	500 '	152.4 m	50	Poly-Vinyl Chloride (PVC)
ALPHA WIRE M5377 SL199	20 AWG	70 %, 100 %	18.11 mm	0.713 in	Copper, Tinned	Aluminum, Copper, Tinned	UL Style 2464	Drain Wire, Rip Cord	300 V	-20 C	80 C	1.346 mm	0.053 in	Multi-Conductor	Slate	28	7	Poly-Vinyl Chloride (PVC)	Braid, Foil			50	Poly-Vinyl Chloride (PVC)	914.4 m	3000 ft
