SMF4L30A

Obsolete

Bourns Inc.

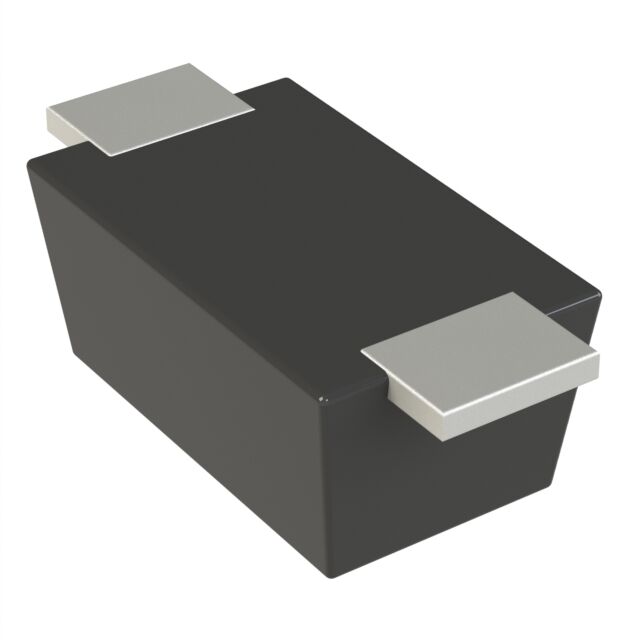

TVS DIODE 30VWM 48.4VC SOD123FL

Search across all available documentation for this part.

Obsolete

Bourns Inc.

TVS DIODE 30VWM 48.4VC SOD123FL

Technical Specifications

Parameters and characteristics for this part

Specification	SMF4L30A

Applications	Telecom
Current - Peak Pulse (10/1000µs)	8.3 A
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	SOD-123F
Power - Peak Pulse	400 W
Power Line Protection	False
Supplier Device Package	SOD-123FL
Type	Zener
Unidirectional Channels [custom]	1
Voltage - Breakdown (Min) [Min]	33.3 V
Voltage - Clamping (Max) @ Ipp	48.4 V
Voltage - Reverse Standoff (Typ)	30 V

Part	Package / Case	Unidirectional Channels [custom]	Supplier Device Package	Grade	Applications	Voltage - Breakdown (Min) [Min]	Type	Qualification	Voltage - Reverse Standoff (Typ)	Power - Peak Pulse	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Clamping (Max) @ Ipp [Max]	Current - Peak Pulse (10/1000µs)	Voltage - Clamping (Max) @ Ipp
Bourns Inc. SMF4L28A-Q	SOD-123F	1	SOD-123FL	Automotive	Telecom	31.1 V	Zener	AEC-Q101	28 V	400 W	Surface Mount	-55 °C	150 °C	45.4 V	8.8 A
Bourns Inc. SMF4L20A	SOD-123F	1	SOD-123FL		Telecom	22.2 V	Zener		20 V	400 W	Surface Mount	-55 °C	150 °C	32.4 V	12.3 A
Bourns Inc. SMF4L30A	SOD-123F	1	SOD-123FL		Telecom	33.3 V	Zener		30 V	400 W	Surface Mount	-55 °C	150 °C		8.3 A	48.4 V
Bourns Inc. SMF4L36A-Q	SOD-123F	1	SOD-123FL	Automotive	Telecom	40 V	Zener	AEC-Q101	36 V	400 W	Surface Mount	-55 °C	150 °C	58.1 V	6.9 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

48.4V Clamp 8.3A Ipp Tvs Diode Surface Mount SOD-123FL
