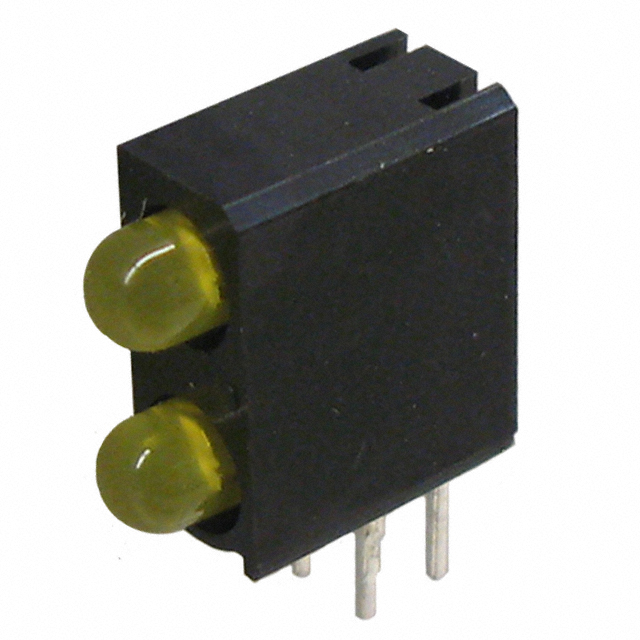

XNC2LUY147D

Active

SunLED

LED CBI 3MM BI-LVL YELLOW RA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XNC2LUY147D

Active

SunLED

LED CBI 3MM BI-LVL YELLOW RA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XNC2LUY147D

Color	Yellow (x 2)
Configuration	2 High
Current	140 mA
Lens Size	3 mm
Lens Size	T-1
Lens Style	Round with Domed Top
Lens Type	Tinted, Diffused
Millicandela Rating	14 mcd
Mounting Type	Through Hole, Right Angle
Viewing Angle [custom]	40 °
Voltage Rating	1.95 V
Wavelength - Peak	590 nm

XNC2LUY147 Series

Part	Lens Size	Lens Size	Millicandela Rating	Viewing Angle [custom]	Current	Lens Style	Wavelength - Peak	Color	Lens Type	Voltage Rating	Mounting Type	Configuration
SunLED XNC2LUY147D	3 mm	T-1	14 mcd	40 °	140 mA	Round with Domed Top	590 nm	Yellow (x 2)	Diffused Tinted	1.95 V	Through Hole Right Angle	2 High

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1000	$ 0.43

Description

General part information

XNC2LUY147 Series

LED Circuit Board Indicator LED Circuit Board Indicator 2 High Yellow (x 2) Diffused, Tinted 1.95V 140mA Round with Domed Top 3mm, T-1 Through Hole, Right Angle
