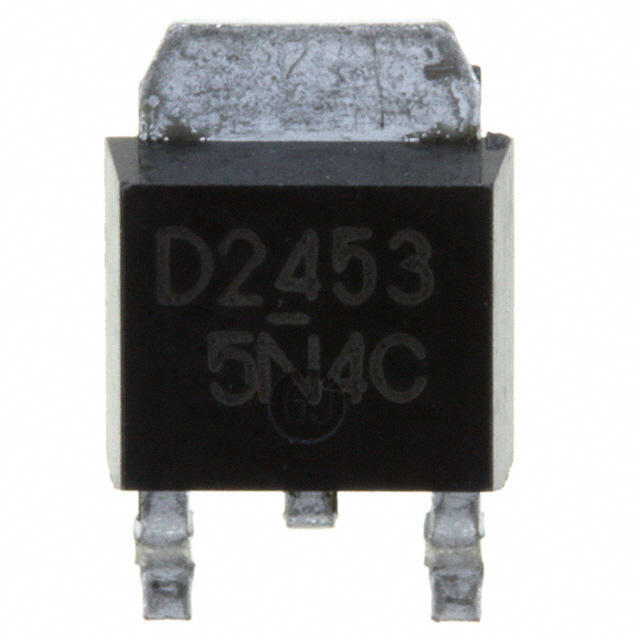

2SD245300L

Obsolete

Panasonic Industrial Automation Sales

TRANS NPN 60V 2A U-G2

Search across all available documentation for this part.

Obsolete

Panasonic Industrial Automation Sales

TRANS NPN 60V 2A U-G2

Technical Specifications

Parameters and characteristics for this part

Specification	2SD245300L

Current - Collector (Ic) (Max) [Max]	2 A
Current - Collector Cutoff (Max) [Max]	100 µA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	500
Frequency - Transition	50 MHz
Mounting Type	Surface Mount
Operating Temperature	150 °C
Package / Case	SC-63, DPAK (2 Leads + Tab), TO-252-3
Power - Max [Max]	1 W
Supplier Device Package	U-G2
Transistor Type	NPN
Vce Saturation (Max) @ Ib, Ic	1 V
Voltage - Collector Emitter Breakdown (Max)	60 V

Part	Frequency - Transition	Power - Max [Max]	Transistor Type	Package / Case	Voltage - Collector Emitter Breakdown (Max)	Mounting Type	Operating Temperature	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Current - Collector Cutoff (Max) [Max]	Supplier Device Package	Current - Collector (Ic) (Max) [Max]	Vce Saturation (Max) @ Ib, Ic
Panasonic Industrial Automation Sales 2SD245300L	50 MHz	1 W	NPN	DPAK (2 Leads + Tab) SC-63 TO-252-3	60 V	Surface Mount	150 °C	500	100 µA	U-G2	2 A	1 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bipolar (BJT) Transistor NPN 60 V 2 A 50MHz 1 W Surface Mount U-G2
