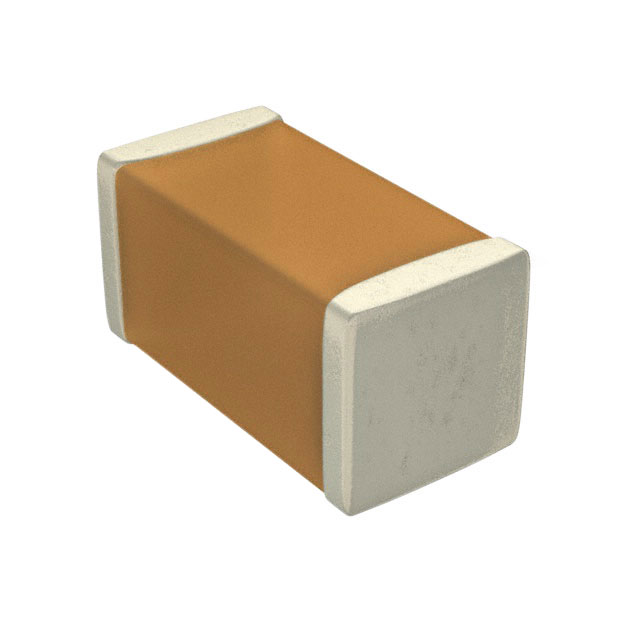

060322000100JQTLSM

Active

Knowles Syfer

CAP CER 10PF 200V C0G/NP0 0603

Deep-Dive with AI

Search across all available documentation for this part.

060322000100JQTLSM

Active

Knowles Syfer

CAP CER 10PF 200V C0G/NP0 0603

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	060322000100JQTLSM	06032 Series

Applications	General Purpose	General Purpose
Capacitance	10 pF	1 - 100 pF
Features	High Q, Non-Magnetic, Low Loss	High Q, Non-Magnetic, Low Loss
Mounting Type	Surface Mount, MLCC	Surface Mount, MLCC
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	0603 (1608 Metric)	0603 (1608 Metric)
Size / Dimension [x]	0.063 in	0.063 in
Size / Dimension [x]	1.6 mm	1.6 mm
Size / Dimension [y]	0.8 mm	0.8 mm
Size / Dimension [y]	0.031 in	0.031 in
Temperature Coefficient	NP0, C0G	NP0, C0G
Thickness (Max)	0.8 mm	0.8 mm
Thickness (Max) [Max]	0.031 "	0.031 "
Tolerance	5 %	0.1 - 5 pF
Voltage - Rated	200 V	100 - 200 V

06032 Series

CAP CER 1PF 200V C0G/NP0 0603

Part	Package / Case	Temperature Coefficient	Mounting Type	Capacitance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]	Thickness (Max) [Max]	Thickness (Max)	Features	Tolerance	Applications	Voltage - Rated
Knowles Syfer 060322001P00BQTLSM	0603 (1608 Metric)	C0G, NP0	MLCC, Surface Mount	1 pF	0.8 mm	0.063 in	1.6 mm	0.031 in	-55 °C	125 °C	0.031 "	0.8 mm	High Q, Low Loss, Non-Magnetic	0.1 pF	General Purpose	200 V
Knowles Syfer 060322002P70BQTLSM	0603 (1608 Metric)	C0G, NP0	MLCC, Surface Mount	2.7 pF	0.8 mm	0.063 in	1.6 mm	0.031 in	-55 °C	125 °C	0.031 "	0.8 mm	High Q, Low Loss, Non-Magnetic	0.1 pF	General Purpose	200 V
Knowles Syfer 060322000100JQTLSM	0603 (1608 Metric)	C0G, NP0	MLCC, Surface Mount	10 pF	0.8 mm	0.063 in	1.6 mm	0.031 in	-55 °C	125 °C	0.031 "	0.8 mm	High Q, Low Loss, Non-Magnetic	5 %	General Purpose	200 V
Knowles Syfer 060321000330FQTLSM	0603 (1608 Metric)	C0G, NP0	MLCC, Surface Mount	33 pF	0.8 mm	0.063 in	1.6 mm	0.031 in	-55 °C	125 °C	0.031 "	0.8 mm	High Q, Low Loss, Non-Magnetic	1 %	General Purpose	100 V
Knowles Syfer 060322004P70BQTLSM	0603 (1608 Metric)	C0G, NP0	MLCC, Surface Mount	4.7 pF	0.8 mm	0.063 in	1.6 mm	0.031 in	-55 °C	125 °C	0.031 "	0.8 mm	High Q, Low Loss, Non-Magnetic	0.1 pF	General Purpose	200 V
Knowles Syfer 060322002P20CQTLSM	0603 (1608 Metric)	C0G, NP0	MLCC, Surface Mount	2.2 pF	0.8 mm	0.063 in	1.6 mm	0.031 in	-55 °C	125 °C	0.031 "	0.8 mm	High Q, Low Loss, Non-Magnetic	0.25 pF	General Purpose	200 V
Knowles Syfer 060321000101JQTLSM	0603 (1608 Metric)	C0G, NP0	MLCC, Surface Mount	100 pF	0.8 mm	0.063 in	1.6 mm	0.031 in	-55 °C	125 °C	0.031 "	0.8 mm	High Q, Low Loss, Non-Magnetic	5 %	General Purpose	100 V
Knowles Syfer 060322003P90BQTLSM	0603 (1608 Metric)	C0G, NP0	MLCC, Surface Mount	3.9 pF	0.8 mm	0.063 in	1.6 mm	0.031 in	-55 °C	125 °C	0.031 "	0.8 mm	High Q, Low Loss, Non-Magnetic	0.1 pF	General Purpose	200 V
Knowles Syfer 060322003P30BQTLSM	0603 (1608 Metric)	C0G, NP0	MLCC, Surface Mount	3.3 pF	0.8 mm	0.063 in	1.6 mm	0.031 in	-55 °C	125 °C	0.031 "	0.8 mm	High Q, Low Loss, Non-Magnetic	0.1 pF	General Purpose	200 V
Knowles Syfer 060321505P10BQTLSM	0603 (1608 Metric)	C0G, NP0	MLCC, Surface Mount	5.1 pF	0.8 mm	0.063 in	1.6 mm	0.031 in	-55 °C	125 °C	0.031 "	0.8 mm	High Q, Low Loss, Non-Magnetic	0.1 pF	General Purpose	150 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.65
		10	$ 0.39
		50	$ 0.29
		100	$ 0.26
		500	$ 0.20
		1000	$ 0.19
	Digi-Reel®	1	$ 0.65
		10	$ 0.39
		50	$ 0.29
		100	$ 0.26
		500	$ 0.20
		1000	$ 0.19
	Tape & Reel (TR)	4000	$ 0.16
		8000	$ 0.15
		12000	$ 0.14
		20000	$ 0.14
		28000	$ 0.14
		40000	$ 0.13

Description

General part information

06032 Series

10 pF ±5% 200V Ceramic Capacitor C0G, NP0 0603 (1608 Metric)

Documents

Technical documentation and resources

No documents available
