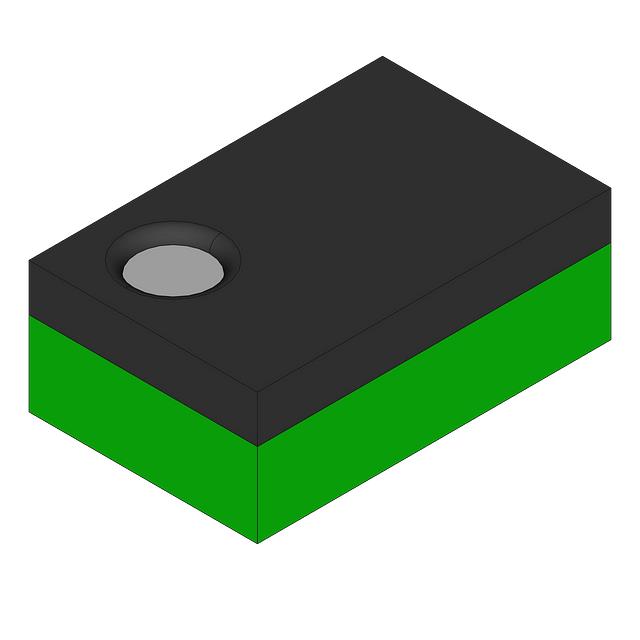

NX5P2924BUK012

Active

Freescale Semiconductor - NXP

LOGIC CONTROLLED HIGH-SIDE POWER

Search across all available documentation for this part.

Active

Freescale Semiconductor - NXP

LOGIC CONTROLLED HIGH-SIDE POWER

Technical Specifications

Parameters and characteristics for this part

Specification	NX5P2924BUK012

Current - Output (Max) [Max]	2.5 A
Features	Slew Rate Controlled, Load Discharge
Input Type	Inverting
Interface	On/Off
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Configuration	High Side
Output Type	N-Channel
Package / Case	WLCSP, 6-XFBGA
Ratio - Input:Output [custom]	1:1
Rds On (Typ)	14 mOhm
Switch Type	General Purpose
Voltage - Load [Max]	5.5 V
Voltage - Load [Min]	0.8 V

Part	Output Configuration	Features	Package / Case	Rds On (Typ)	Current - Output (Max) [Max]	Input Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Number of Outputs	Output Type	Interface	Switch Type	Ratio - Input:Output [custom]	Voltage - Load [Max]	Voltage - Load [Min]
Freescale Semiconductor - NXP NX5P2924BUK012	High Side	Load Discharge Slew Rate Controlled	6-XFBGA WLCSP	14 mOhm	2.5 A	Inverting	85 °C	-40 °C	Surface Mount	1	N-Channel	On/Off	General Purpose	1:1	5.5 V	0.8 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Power Switch/Driver 1:1 N-Channel 2.5A 6-WLCSP (0.87x1.37)
