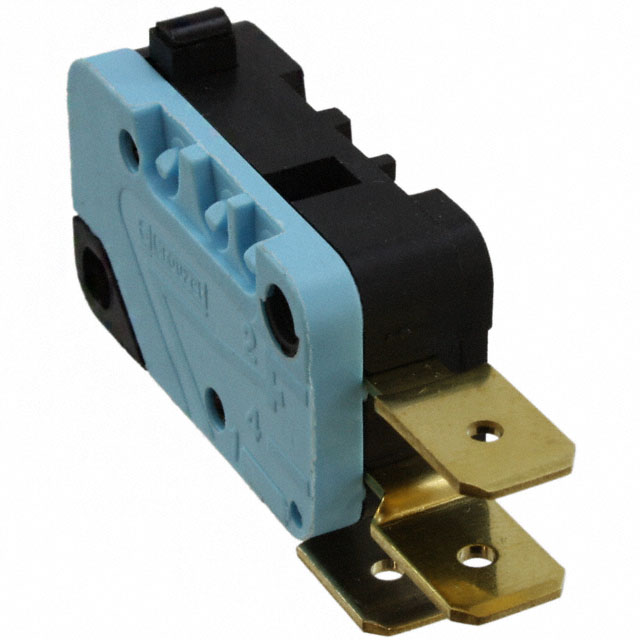

83161873

Active

Crouzet

SWITCH SNAP ACT SPDT 0.1A 250V

Search across all available documentation for this part.

Active

Crouzet

SWITCH SNAP ACT SPDT 0.1A 250V

Technical Specifications

Parameters and characteristics for this part

SWITCH SNAP ACT SPDT 0.1A 250V

Part	Release Force	Voltage Rating - AC	Switch Function	Current Rating (Amps)	Operating Force	Mechanical Life	Operating Position	Operating Position	Operating Temperature [Min]	Operating Temperature [Max]	Overtravel	Overtravel	Mounting Type	Termination Style	Actuator Type	Circuit
Crouzet 83161873	20 gf	250 V	On-Mom	100 mA	82 gf	20000000 Cycles	0.579 in	14.7 mm	-20 C	125 °C	1.2 mm	0.047 "	Chassis Mount	Quick Connect - 0.250" (6.3mm)	Round (Pin Plunger)	SPDT

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 5.28

General part information

Switch SPDT Chassis Mount

Technical documentation and resources
