2SB1475-T1-A

Active

Renesas Electronics Corporation

SMALL SIGNAL BIPOLAR TRANSISTORS

Search across all available documentation for this part.

Active

Renesas Electronics Corporation

SMALL SIGNAL BIPOLAR TRANSISTORS

Technical Specifications

Parameters and characteristics for this part

Specification	2SB1475-T1-A

Current - Collector (Ic) (Max) [Max]	500 mA
Current - Collector Cutoff (Max) [Max]	100 nA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	110
Frequency - Transition	50 MHz
Mounting Type	Surface Mount
Operating Temperature	150 °C

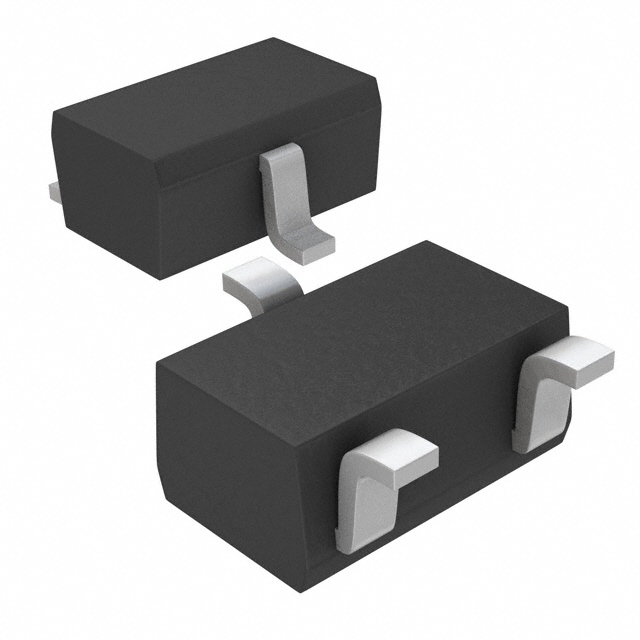

Package / Case	SC-70, SOT-323
Power - Max [Max]	150 mW
Supplier Device Package	SC-70
Transistor Type	PNP
Vce Saturation (Max) @ Ib, Ic	400 mV
Voltage - Collector Emitter Breakdown (Max)	16 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Small Signal Bipolar Transistors

Part	Vce Saturation (Max) @ Ib, Ic	Mounting Type	Current - Collector Cutoff (Max) [Max]	Supplier Device Package	Operating Temperature	Package / Case	Current - Collector (Ic) (Max) [Max]	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Frequency - Transition	Voltage - Collector Emitter Breakdown (Max)	Power - Max [Max]	Transistor Type
Renesas Electronics Corporation 2SB1475-T1-A	400 mV	Surface Mount	100 nA	SC-70	150 °C	SC-70, SOT-323	500 mA	110	50 MHz	16 V	150 mW	PNP

General part information

Small Signal Bipolar Transistors
