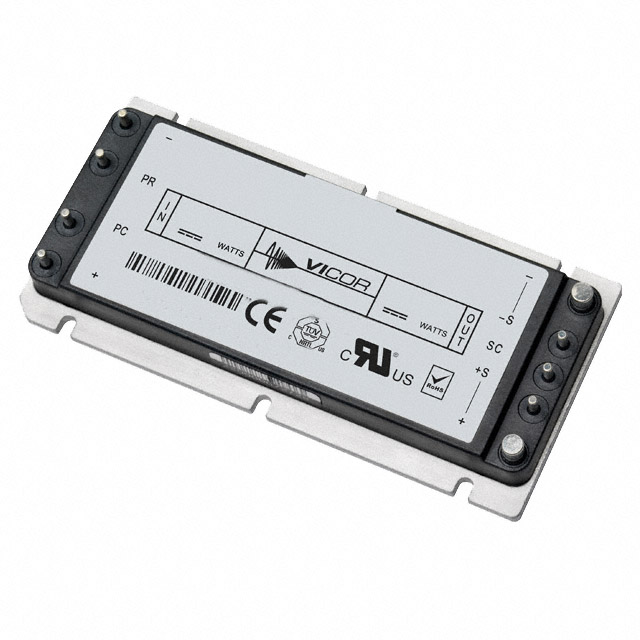

V110A3V3T150BG
ActiveVicor Corporation
DC DC CONVERTER 3.3V 150W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
V110A3V3T150BG
ActiveVicor Corporation
DC DC CONVERTER 3.3V 150W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | V110A3V3T150BG |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 45.45 A |
| Efficiency | 81.8 % |
| Features | OVP, UVLO |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Full Brick |
| Power (Watts) | 150 W |
| Size / Dimension [x] | 4.6 " |
| Size / Dimension [x] | 116.8 mm |
| Size / Dimension [y] | 2.2 in |
| Size / Dimension [y] | 55.9 mm |
| Size / Dimension [z] | 0.62 in |
| Size / Dimension [z] | 15.7 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 154 V |
| Voltage - Input (Min) [Min] | 66 V |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
V110A3V3T150 Series
Isolated Module DC DC Converter 1 Output 3.3V 45.45A 66V - 154V Input
