Q-0O00W000S.25M

Active

Amphenol Custom Cable

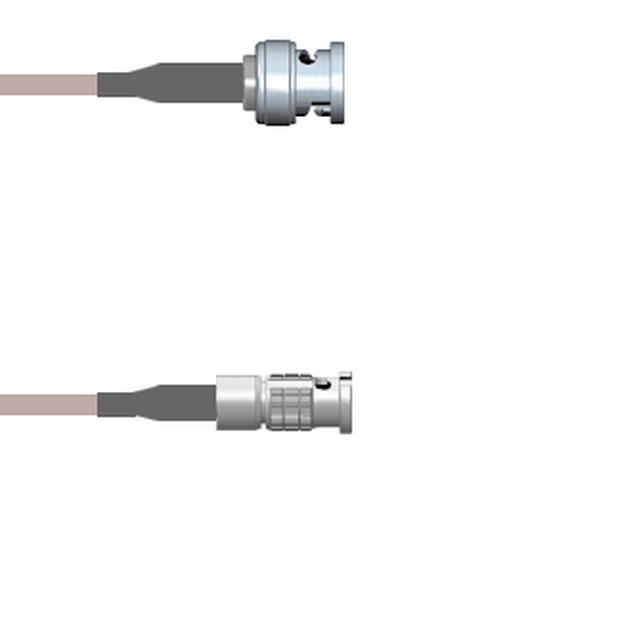

CBL ASSY BNC-HDBNC PLG-PL 9.843"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0O00W000S.25M

1st Connector	BNC Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	HD-BNC Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-179
Color	Copper
Features	Shielded
Frequency - Max [Max]	3 GHz
Length [x]	9.843 "
Length [x]	250 mm
Overall Impedance	75 Ohms
Style	BNC to HD-BNC

Q-0O00W0 Series

Part	Style	Frequency - Max [Max]	1st Connector Mounting Type	2nd Connector Mounting Type	Cable Type	Overall Impedance	2nd Contact Gender	Color	Length [x]	Length [x]	1st Contact Gender	Features	2nd Connector	1st Connector	Length	Length	Length
Amphenol Custom Cable Q-0O00W000S.25M	BNC to HD-BNC	3 GHz	Free Hanging (In-Line)	Free Hanging (In-Line)	RG-179	75 Ohms	Male	Copper	9.843 "	250 mm	Male	Shielded	HD-BNC Plug	BNC Plug
Amphenol Custom Cable Q-0O00W000S003M	BNC to HD-BNC	3 GHz	Free Hanging (In-Line)	Free Hanging (In-Line)	RG-179	75 Ohms	Male	Copper			Male	Shielded	HD-BNC Plug	BNC Plug	3 m	118.1 in	9.8 '
Amphenol Custom Cable Q-0O00W000S036i	BNC to HD-BNC	3 GHz	Free Hanging (In-Line)	Free Hanging (In-Line)	RG-179	75 Ohms	Male	Copper			Male	Shielded	HD-BNC Plug	BNC Plug	91.44 cm	36 in
Amphenol Custom Cable Q-0O00W000S0.5M	BNC to HD-BNC	3 GHz	Free Hanging (In-Line)	Free Hanging (In-Line)	RG-179	75 Ohms	Male	Copper			Male	Shielded	HD-BNC Plug	BNC Plug	50 cm	19.69 "
Amphenol Custom Cable Q-0O00W000S012i	BNC to HD-BNC	3 GHz	Free Hanging (In-Line)	Free Hanging (In-Line)	RG-179	75 Ohms	Male	Copper			Male	Shielded	HD-BNC Plug	BNC Plug	304.8 mm	12 "
Amphenol Custom Cable Q-0O00W000S024i	BNC to HD-BNC	3 GHz	Free Hanging (In-Line)	Free Hanging (In-Line)	RG-179	75 Ohms	Male	Copper			Male	Shielded	HD-BNC Plug	BNC Plug	609.6 mm	24 "
Amphenol Custom Cable Q-0O00W000S001M	BNC to HD-BNC	3 GHz	Free Hanging (In-Line)	Free Hanging (In-Line)	RG-179	75 Ohms	Male	Copper			Male	Shielded	HD-BNC Plug	BNC Plug	1 m	39.4 in	3.3 ft
Amphenol Custom Cable Q-0O00W000S2.5M	BNC to HD-BNC	3 GHz	Free Hanging (In-Line)	Free Hanging (In-Line)	RG-179	75 Ohms	Male	Copper			Male	Shielded	HD-BNC Plug	BNC Plug	2.5 m	98.4 in	8.2 '
Amphenol Custom Cable Q-0O00W000S048i	BNC to HD-BNC	3 GHz	Free Hanging (In-Line)	Free Hanging (In-Line)	RG-179	75 Ohms	Male	Copper			Male	Shielded	HD-BNC Plug	BNC Plug	1200 mm	48 in	4 ft
Amphenol Custom Cable Q-0O00W000S072i	BNC to HD-BNC	3 GHz	Free Hanging (In-Line)	Free Hanging (In-Line)	RG-179	75 Ohms	Male	Copper			Male	Shielded	HD-BNC Plug	BNC Plug	1.8 m	72 in	6 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 102.34
		25	$ 100.35
		50	$ 98.35
		100	$ 96.36
		250	$ 94.36

Description

General part information

Q-0O00W0 Series

Cable Assembly Coaxial BNC to HD-BNC RG-179 9.843" (250.00mm)

Documents

Technical documentation and resources

No documents available
