1318386-2

Active

TE Connectivity AMP Connectors

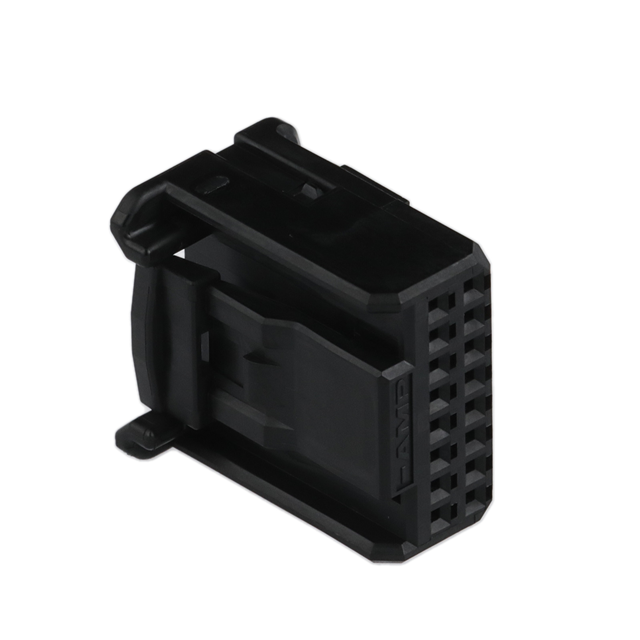

CONN PLUG HSG 16POS 2.20MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN PLUG HSG 16POS 2.20MM

Technical Specifications

Parameters and characteristics for this part

Specification	1318386-2

Color	Black
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Holder
Features	Retainer
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	16
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Pitch [x]	0.087 in
Pitch [x]	2.2 mm
Row Spacing [x]	0.118 in
Row Spacing [x]	3 mm

CONN PLUG HSG 16POS 2.20MM

Part	Contact Type	Mounting Type	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Fastening Type	Features	Note	Contact Termination	Row Spacing [x]	Row Spacing [x]	Connector Type	Insulation Material	Color	Pitch [x]	Pitch [x]
TE Connectivity AMP Connectors 1318386-2	Female Socket	Free Hanging (In-Line)	2	-30 ░C	105 ░C	16	Latch Holder	Retainer	Contacts Not Included	Crimp	0.118 in	3 mm	Plug	Polybutylene Terephthalate (PBT)	Black	0.087 in	2.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

16 Rectangular Connectors - Housings Plug Black 0.087" (2.20mm)
