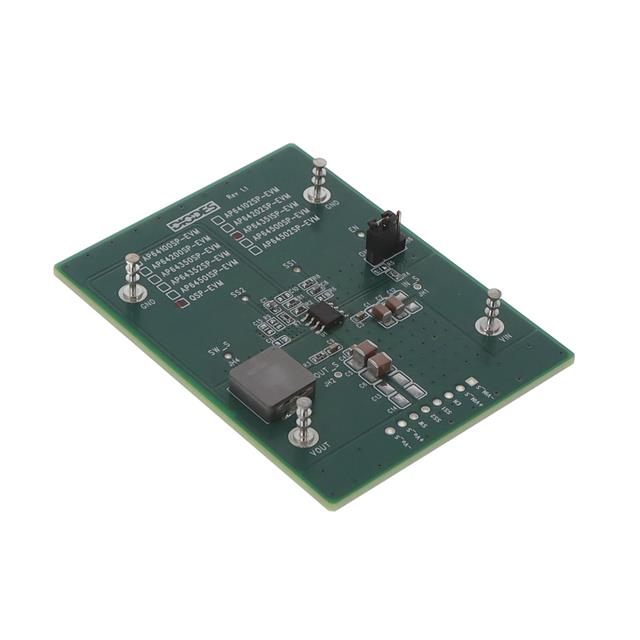

AP64351QSP-EVM

Active

Diodes Inc

EVAL BOARD FOR AP64351Q

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AP64351QSP-EVM

Active

Diodes Inc

EVAL BOARD FOR AP64351Q

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AP64351QSP-EVM

Board Type	Fully Populated
Current - Output	3.5 A
Frequency - Switching	570 kHz
Main Purpose	DC/DC, Step Down
Outputs and Type	Non-Isolated
Outputs and Type	1
Regulator Topology	Buck
Supplied Contents	Board(s)
Utilized IC / Part	AP64351Q
Voltage - Input [Max]	40 V
Voltage - Input [Min]	3.8 V
Voltage - Output [Max]	40 V
Voltage - Output [Min]	0.8 V

AP64351 Series

3.8V TO 40V INPUT, 3.5A LOW IQ SYNCHRONOUS BUCK

Part	Grade	Output Configuration	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output	Number of Outputs	Voltage - Output (Max) [Max]	Function	Synchronous Rectifier	Voltage - Input (Min) [Min]	Output Type	Qualification	Frequency - Switching	Supplier Device Package	Topology	Voltage - Output (Min/Fixed)	Mounting Type	Package / Case	Package / Case	Package / Case	Supplied Contents	Main Purpose	Regulator Topology	Voltage - Output [Min]	Voltage - Output [Max]	Utilized IC / Part	Voltage - Input [Min]	Voltage - Input [Max]	Outputs and Type	Outputs and Type	Board Type
Diodes Inc AP64351QSP-13	Automotive	Positive	-40 °C	125 °C	3.5 A	1	40 V	Step-Down		3.8 V	Adjustable	AEC-Q100	570 kHz	8-SO-EP	Buck	0.8 V	Surface Mount	0.154 in	8-SOIC	3.9 mm
Diodes Inc AP64351QSP-EVM					3.5 A								570 kHz								Board(s)	DC/DC Step Down	Buck	0.8 V	40 V	AP64351Q	3.8 V	40 V	Non-Isolated	1	Fully Populated

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 41.15

Description

General part information

AP64351 Series

The AP64351 is a 3.5A, synchronous buck converter with a wide input voltage range of 3.8V to 40V. The device fully integrates a 75mΩ high-side power MOSFET and a 45mΩ low-side power MOSFET to provide high-efficiency step-down DC-DC conversion.
