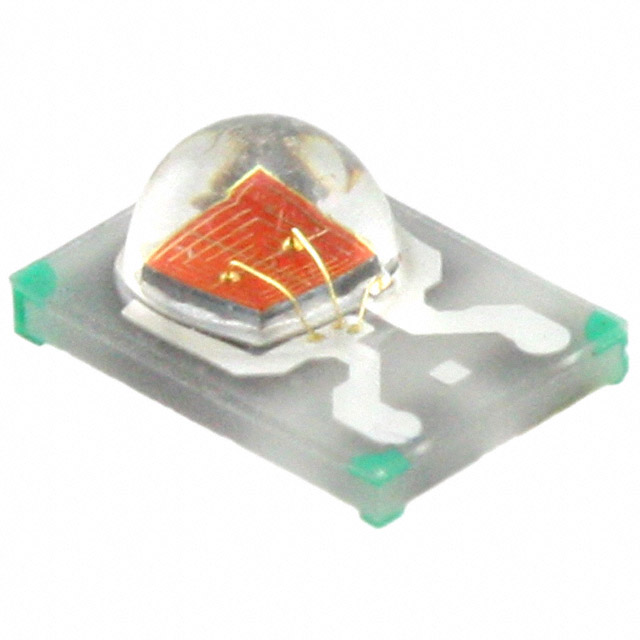

ELSH-F61O1-0LPNM-AR3R4

Active

Everlight Electronics Co Ltd

SINGLE COLOR LED, ORANGE, ROHS COMPLIANT, SMT, 2 PIN

Search across all available documentation for this part.

Active

Everlight Electronics Co Ltd

SINGLE COLOR LED, ORANGE, ROHS COMPLIANT, SMT, 2 PIN

Technical Specifications

Parameters and characteristics for this part

Specification	ELSH-F61O1-0LPNM-AR3R4

Current - Max [Max]	600 mA
Current - Test	350 mA
Lumens/Watt @ Current - Test	79 lm/W
Luminous Flux @ Current/Temperature	65 lm
Mounting Type	Surface Mount
Package / Case	3246 Metric, 1218
Size / Dimension [x]	3.05 mm
Size / Dimension [x]	0.12 in
Size / Dimension [y]	0.177 "
Size / Dimension [y]	4.5 mm
Supplier Device Package	SMD
Thermal Resistance of Package [custom]	12 °C/W
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	2.35 V
Wavelength [Max]	620 nm
Wavelength [Min]	610 nm

Part	Current - Max [Max]	Flux @ 85°C, Current - Test	Thermal Resistance of Package [diameter]	Package / Case	CRI (Color Rendering Index)	Mounting Type	Current - Test	Voltage - Forward (Vf) (Typ)	Flux @ 25°C, Current - Test [Min]	Flux @ 25°C, Current - Test [Max]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Color	CCT (K)	Lumens/Watt @ Current - Test	Viewing Angle	Wavelength [Max]	Wavelength [Min]	Size / Dimension [y]	Thermal Resistance of Package [custom]	Package / Case	Luminous Flux @ Current/Temperature	Supplier Device Package
Everlight Electronics Co Ltd ELSH-F61M1-0CPHS-C2700	600 mA	53 lm	10 °C/W	1812 (4532 Metric)	80	Surface Mount	350 mA	3.25 V	60 lm	70 lm	0.177 in	4.5 mm	0.12 "	3.05 mm	Warm White	2700 K	53 lm/W	120 °
Everlight Electronics Co Ltd ELSH-F61O1-0LPNM-AR3R4	600 mA					Surface Mount	350 mA	2.35 V			0.12 in	3.05 mm	0.177 "				79 lm/W	120 °	620 nm	610 nm	4.5 mm	12 °C/W	1218 3246 Metric	65 lm	SMD

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting Color SHUEN Orange 615nm (610nm ~ 620nm) 1218 (3246 Metric)
