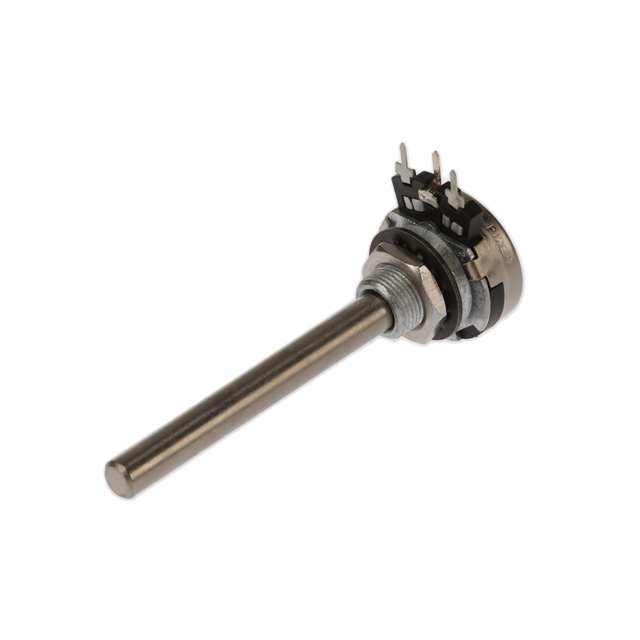

T21AH-M0607-502A2020-TA

Active

Amphenol Piher Sensing Systems

POT 5K OHM 1/4W CARBON LINEAR

Search across all available documentation for this part.

Active

Amphenol Piher Sensing Systems

POT 5K OHM 1/4W CARBON LINEAR

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5k Ohm 1 Gang Linear Panel Mount Potentiometer None 1.0 Kierros Carbon 0.25W, 1/4W PC Pins

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	T21AH-M0607-502A2020-TA	T21 Series

Actuator Diameter [diameter]	0.236 in	0.236 in
Actuator Diameter [diameter]	6 mm	6 mm
Actuator Length	60 mm	60 mm
Actuator Length [z]	2.362 in	2.362 in
Actuator Type	Round	Round, Knurled
Adjustment Type	Side Adjustment	User Defined, Side Adjustment
Built in Switch	False	False
Bushing Thread	M10 x 0.75	M10 x 0.75
Number of Gangs	1	1
Number of Turns	1	1
Power (Watts)	0.25 W	0.25 W
Power (Watts)	250 mW	250 mW
Resistance (Ohms)	5 kOhms	5 kOhms
Resistance (Ohms)	-	10k
Resistive Material	Carbon	Carbon
Rotation	310 °	310 °
Size - Body [diameter]	0.846 in	0.846 in
Size - Body [diameter]	21.5 mm	21.5 mm
Taper	Linear	Linear
Temperature Coefficient	300 ppm/°C	300 ppm/°C
Termination Style	PC Pins	Solder Lug, PC Pins
Tolerance	20 %	20 %

POT 10K OHM 1/4W CARBON LINEAR

Part	Size - Body [diameter]	Size - Body [diameter]	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Tolerance	Resistance (Ohms)	Power (Watts)	Power (Watts)	Number of Turns	Number of Gangs	Taper	Temperature Coefficient	Rotation	Actuator Type	Termination Style	Bushing Thread	Actuator Length [z]	Actuator Length	Adjustment Type	Resistive Material	Resistance (Ohms)
Amphenol Piher Sensing Systems T21AC-M0607-103A2020-TA	0.846 in	21.5 mm	0.236 in	6 mm	20 %	10k	0.25 W	250 mW	1	1	Linear	300 ppm/°C	310 °	Round	Solder Lug	M10 x 0.75	2.362 in	60 mm	User Defined	Carbon
Amphenol Piher Sensing Systems T21AH-M0607-103A2020-TA	0.846 in	21.5 mm	0.236 in	6 mm	20 %	10k	0.25 W	250 mW	1	1	Linear	300 ppm/°C	310 °	Round	PC Pins	M10 x 0.75	2.362 in	60 mm	Side Adjustment	Carbon
Amphenol Piher Sensing Systems T21AH-M0607-502A2020-TA	0.846 in	21.5 mm	0.236 in	6 mm	20 %		0.25 W	250 mW	1	1	Linear	300 ppm/°C	310 °	Round	PC Pins	M10 x 0.75	2.362 in	60 mm	Side Adjustment	Carbon	5 kOhms
Amphenol Piher Sensing Systems T21YC-P0607-103A2020-TA	0.846 in	21.5 mm	0.236 in	6 mm	20 %	10k	0.25 W	250 mW	1	1	Linear	300 ppm/°C	310 °	Knurled	Solder Lug	M10 x 0.75			User Defined	Carbon
