C14630G0036004

Active

Amphenol Tuchel Industrial

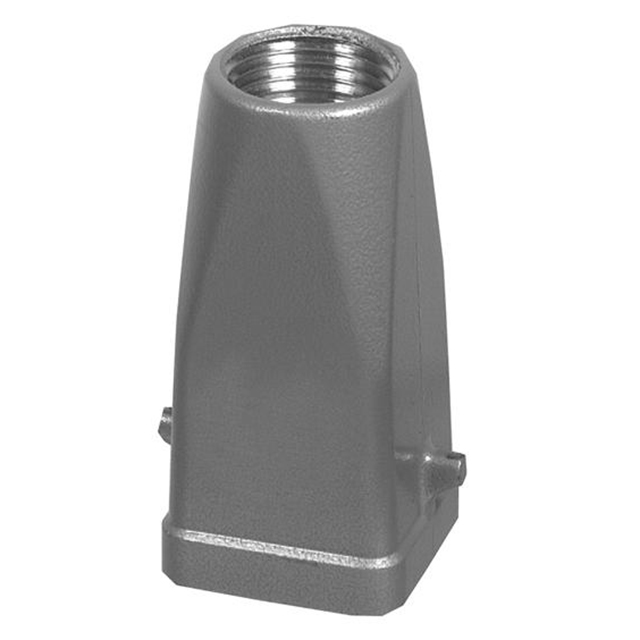

CONN HOOD TOP ENTRY SZA3/4 PG11

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN HOOD TOP ENTRY SZA3/4 PG11

Technical Specifications

Parameters and characteristics for this part

Specification	C14630G0036004

Connector Type	Hood
Housing Material	Aluminum Alloy, Die Cast
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Size	A3/4
Size / Dimension [x]	1.043 in
Size / Dimension [x]	26.5 mm
Size / Dimension [y]	1.043 "
Size / Dimension [y]	26.5 mm
Size / Dimension [z]	1.969 in
Size / Dimension [z]	50 mm
Style	Top Entry
Thread Size	PG11

Part	Housing Material	Size	Thread Size	Features	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Connector Type	Style	Lock Location	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]
Amphenol Tuchel Industrial C14630G0038044	Aluminum Alloy Die Cast	A3/4	PG11	Cable to Cable	100 °C	-40 °C	IP65 - Dust Tight Water Resistant	Hood - Coupling	Bottom Entry	Locking Clip (1) on Base Bottom	1.043 "	26.5 mm	1.969 in	1.043 in	26.5 mm	50 mm
Amphenol Tuchel Industrial C14630G0036004	Aluminum Alloy Die Cast	A3/4	PG11		100 °C	-40 °C	IP65 - Dust Tight Water Resistant	Hood	Top Entry	Locking Clip (1) on Base Bottom	1.043 "	26.5 mm	1.969 in	1.043 in	26.5 mm	50 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 9.01

General part information

Hood Connector Top Entry PG11 A3/4 IP65 - Dust Tight, Water Resistant
