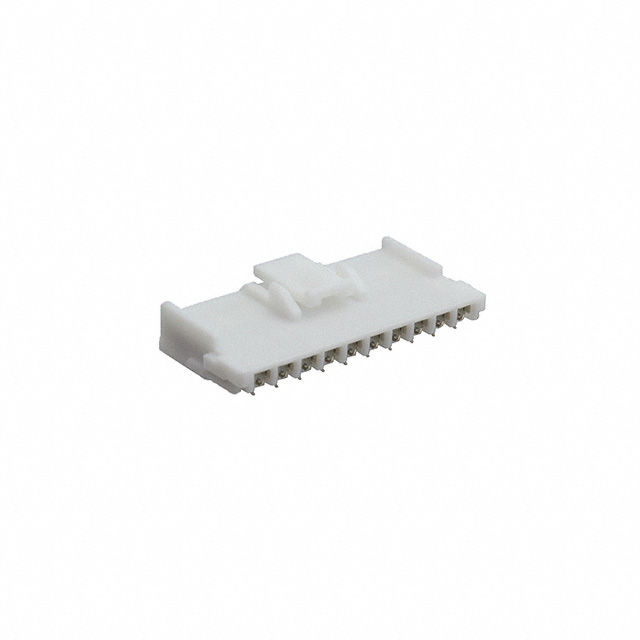

10XAF-2S
ActiveJST Sales America Inc.
CONN HOUSING XAF POS 2.5MM
10XAF-2S
ActiveJST Sales America Inc.
CONN HOUSING XAF POS 2.5MM
Description
General part information
10XAF Series
10 Position Rectangular Socket Connector IDC Tin 22 AWG
Technical Specifications
Parameters and characteristics for this part
| Specification | 10XAF-2S |
|---|---|
| Cable Termination | IDC |
| Color | Natural |
| Connector Type | Socket |
| Contact Finish | Tin |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Features | Closed End |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 10 |
| Number of Rows | 1 |
| Pitch | 0.098 in |
| Wire Gauge | 22 AWG |
| Wire Type | Discrete |
