TBU-02-W3-CC

Active

Adam Tech

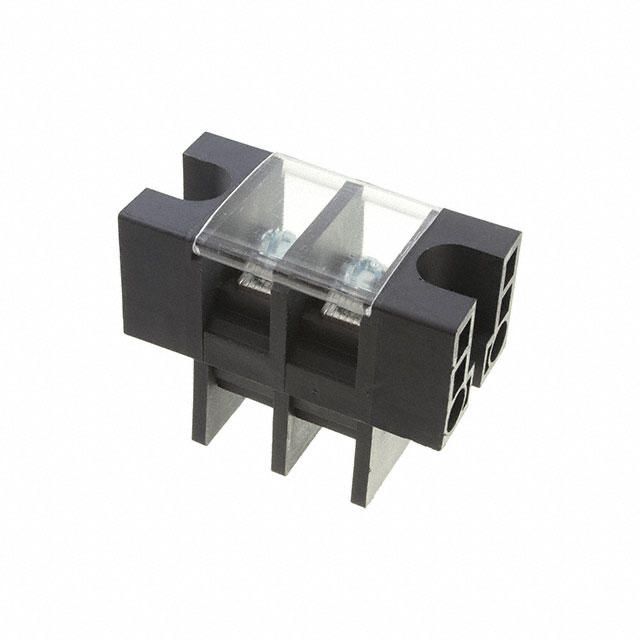

TERMINAL BLOCK, 2 POSITION

Search across all available documentation for this part.

Active

Adam Tech

TERMINAL BLOCK, 2 POSITION

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TBU-02-W3-CC	TBU-02 Series

Barrier Type	2 Wall (Dual)	2 Wall (Dual)
Bottom Termination	Screw	Screw
Color	Black	Black
Current Rating (Amps)	65 A	30 - 65 A
Features	Flange	Flange
Material - Insulation	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Panel, Chassis	Panel, Chassis
Number of Circuits	2	2
Number of Rows	1	1
Number of Wire Entries	2	2
Operating Temperature [Max]	130 °C	130 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	0.63 in	0.433 - 0.63 in
Pitch [x]	16 mm	11 - 16 mm
Terminal Block Type	Barrier Block	Barrier Block
Terminal Screw Finish	Nickel	Nickel
Terminal Screw Material	Steel	Steel
Top Termination	Screws	Screws with Captive Plate, Screws
Voltage Rating	600 V	300 - 600 V
Wire Gauge [Max]	14 AWG	14 - 22 AWG
Wire Gauge [Min]	6 AWG	6 - 10 AWG

TERMINAL BLOCK, 2 POSITION

Part	Wire Gauge [Min]	Wire Gauge [Max]	Terminal Screw Material	Terminal Screw Finish	Operating Temperature [Min]	Operating Temperature [Max]	Features	Barrier Type	Voltage Rating	Material Flammability Rating	Number of Circuits	Material - Insulation	Current Rating (Amps)	Bottom Termination	Number of Wire Entries	Pitch [x]	Pitch [x]	Mounting Type	Color	Top Termination	Terminal Block Type	Number of Rows
Adam Tech TBU-02-W2	8 AWG	22 AWG	Steel	Nickel	-40 °C	130 °C	Flange	2 Wall (Dual)	600 V	UL94 V-0	2	Polybutylene Terephthalate (PBT)	50 A	Screw	2	0.512 in	13 mm	Chassis, Panel	Black	Screws with Captive Plate	Barrier Block	1
Adam Tech TBU-02-W1	10 AWG	22 AWG	Steel		-40 °C	130 °C	Flange	2 Wall (Dual)	300 VDC	UL94 V-0	2	Polybutylene Terephthalate (PBT)	30 A	Screw	2	0.433 in	11 mm	Chassis, Panel	Black	Screws with Captive Plate	Barrier Block	1
Adam Tech TBU-02-W3-CCS	6 AWG	14 AWG	Steel	Nickel	-40 °C	130 °C	Flange	2 Wall (Dual)	600 V	UL94 V-0	2	Polybutylene Terephthalate (PBT)	65 A	Screw	2	0.63 in	16 mm	Chassis, Panel	Black	Screws	Barrier Block	1
Adam Tech TBU-02-W3-CC	6 AWG	14 AWG	Steel	Nickel	-40 °C	130 °C	Flange	2 Wall (Dual)	600 V	UL94 V-0	2	Polybutylene Terephthalate (PBT)	65 A	Screw	2	0.63 in	16 mm	Chassis, Panel	Black	Screws	Barrier Block	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
