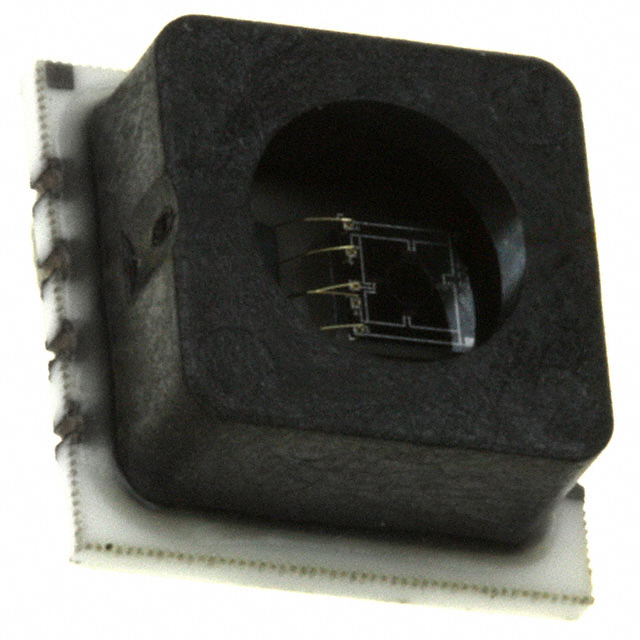

1451-050A-W

Obsolete

TE Connectivity Measurement Specialties

SENSOR 50PSIA .06V

Search across all available documentation for this part.

Obsolete

TE Connectivity Measurement Specialties

SENSOR 50PSIA .06V

Technical Specifications

Parameters and characteristics for this part

Part	Output Type	Maximum Pressure [Max]	Maximum Pressure [Max]	Package / Case	Termination Style	Port Style	Port Size	Port Size	Port Size	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Operating Pressure	Operating Pressure	Pressure Type	Mounting Type	Output [Max]	Output	Voltage - Supply [Max]	Voltage - Supply [Min]	Accuracy	Operating Pressure [custom]	Operating Pressure [custom]
TE Connectivity Measurement Specialties 1451-030G-T	Wheatstone Bridge	90 PSI	620.53 kPa	10-SMD Module	SMD (SMT) Tab	Barbless	2.29 mm	Male Tube	0.09 "	Board Mount	125 °C	-40 °C	206.84 kPa	30 PSI	Vented Gauge	Surface Mount	60 mV	3V	12 V	3 V	0.25 %
TE Connectivity Measurement Specialties 1451-015A-N	Wheatstone Bridge	45 PSI	310.26 kPa	10-SMD Module	SMD (SMT) Tab	No Port				Board Mount	125 °C	-40 °C				Surface Mount	60 mV	3V	12 V	3 V	0.25 %	15 PSI	103.42 kPa
TE Connectivity Measurement Specialties 1451-100G-T	Wheatstone Bridge	300 PSI	2068.43 kPa	10-SMD Module	SMD (SMT) Tab	Barbless	2.29 mm	Male Tube	0.09 "	Board Mount	125 °C	-40 °C	689.48 kPa	100 PSI	Vented Gauge	Surface Mount	60 mV	3V	12 V	3 V	0.25 %
TE Connectivity Measurement Specialties 1451-050A-W	Wheatstone Bridge	150 PSI	1034.21 kPa	10-SMD Module	SMD (SMT) Tab	No Port				Board Mount	125 °C	-40 °C	344.74 kPa	50 PSI		Surface Mount	60 mV	3V	12 V	3 V	0.25 %
TE Connectivity Measurement Specialties 1451-015G-T	Wheatstone Bridge	45 PSI	310.26 kPa	10-SMD Module	SMD (SMT) Tab	Barbless	2.29 mm	Male Tube	0.09 "	Board Mount	125 °C	-40 °C			Vented Gauge	Surface Mount	60 mV	3V	12 V	3 V	0.25 %	15 PSI	103.42 kPa

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pressure Sensor 50PSI (344.74kPa) Absolute 0 mV ~ 60 mV (3V) 10-SMD Module
