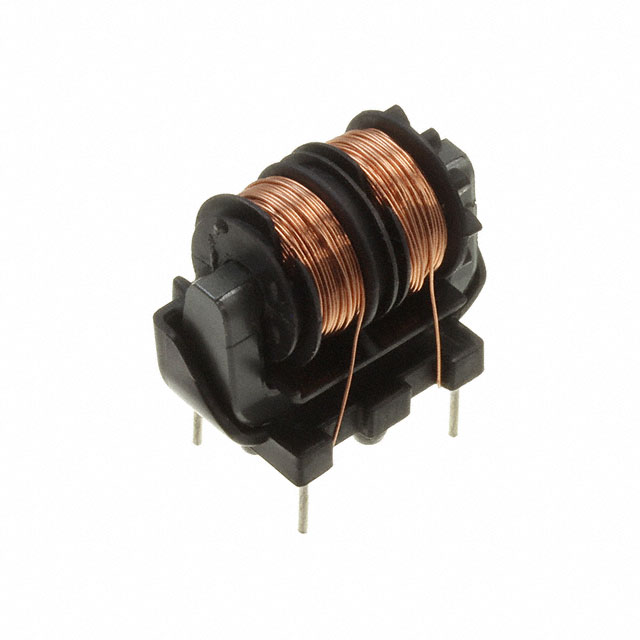

SSR10V-07330

Active

KEMET

SINGLE PHASE EMI FILTER,

Search across all available documentation for this part.

Active

KEMET

SINGLE PHASE EMI FILTER,

Technical Specifications

Parameters and characteristics for this part

Part	Voltage Rating - AC	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Number of Lines	Current Rating (Max) [Max]	Height (Max)	Height (Max)	Package / Case	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Inductance @ Frequency	DC Resistance (DCR) (Max) [Max]
KEMET SSR10V-06475	250 V	Through Hole	0.925 "	0.512 in	23.5 mm	13 mm	2	600 mA	0.827 in	21 mm	4 Lead	Vertical	120 °C	-25 °C	47.5 mH	1.3 Ohm
KEMET SSR10V-05595	250 V	Through Hole	0.925 "	0.512 in	23.5 mm	13 mm	2	500 mA	0.827 in	21 mm	4 Lead	Vertical	120 °C	-25 °C	59.5 mH	1.7 Ohm
KEMET SSR10V-10170	250 V	Through Hole	0.925 "	0.512 in	23.5 mm	13 mm	2	1 A	0.827 in	21 mm	4 Lead	Vertical	120 °C	-25 °C	10 kHz 17 mH	480 mOhm
KEMET SSR10V-07330	250 V	Through Hole	0.925 "	0.512 in	23.5 mm	13 mm	2	700 mA	0.827 in	21 mm	4 Lead	Vertical	120 °C	-25 °C	10 kHz 33 mH	900 mOhm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

33 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 700mA DCR 900mOhm
